Refinishing the precombustion chamber sealing surface - ra01006010410x(0410)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engines 601, 602 (except 602.98), 603

Preceding work:

Nozzle holder removed.

Precombustion chamber removed

Operation no. of the operation texts and work units or standard texts and flat rates

Fig 1: Refinishing Precombustion Chamber Sealing Surface

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Precombustion chamber mounting bores	plug or seal off toward combustion chamber (step 2).
Countersinking tool 601 589 00 66 00 (01, 02, 03)	screw into precombustion chamber mounting bore to be refinished down to stop (steps 3 - 4).
Interval "X"	measure between top of shaft (01) and top of sleeve (02) (step 5). NOTE: When the cylinder head is installed, measuring interval "X" replaces measuring the projection dimension "C".
Precombustion chamber sealing surface	refinish, use countersinking tool 601 589 00 66 00 with tap wrench, turn clockwise approx. 5 revolution while exerting slight pressure (step 6). Do not lift countersinking tool while refinishing.
Interval "X"	measure again (step 7). NOTE: The difference between the 1st and 2nd measurements corresponds to the material removed and therefore the thickness of the required spacer ring.
Countersinking tool	screw out and clean chips out of mounting bore (step 8).
Engine	turn over with starter to throw out any chips which may have got into the combustion chamber (step 9).
Spacer ring	select according to difference in measurements and install (step 10). NOTE: See table for thicknesses of available spacer rings.
Refinished precombustion chamber	mark with punch in area of mounting bore (step 11).

DATA

Precombustion chamber projection dimension "C"

7.6 - 8.1 mm

PARTS

Designation		Part no.
Spacer ring	0.3 mm	601 017 04 60
	0.6 mm	601 017 02 60
	1.0 mm	601 017 03 60

Special tool

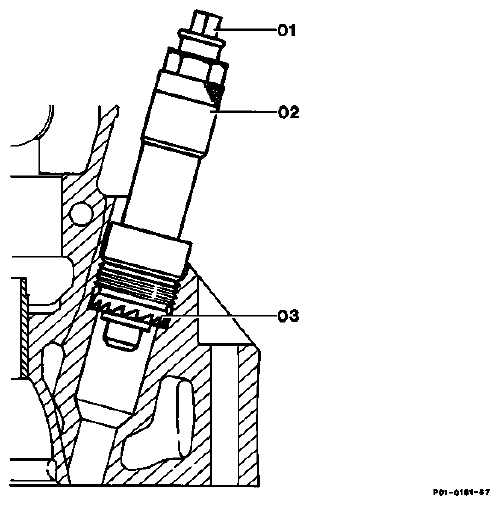

Fig 2: Identifying Special Tools (601 589 00 66 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Refinishing

NOTE: Refinish precombustion chamber sealing surface when damaged or leaking. The first refinishing operation on the precombustion chamber sealing surface can be performed with the cylinder head removed or installed. If the sealing surfaces have already been refinished once before, this can be recognized by the markings (punch marks) in the area of the precombustion chamber mounting bores or on the spacers installed. In this case it is necessary to remove the cylinder head to refinish again. The precombustion chamber projection dimension "C" (7.6 - 8.1 mm) can only be measured precisely with the cylinder head removed. Maintenance of this projection dimension assures that the necessary distance between the precombustion chamber and piston crown is present when the piston is in the TDC position.

Cylinder head removed:

Fig 3: Identifying Precombustion Chamber Projection Dimension (C)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

When the cylinder head is removed the scope of work for refinishing is the same except for steps 5 and 7. Instead of steps 5 and 7 measure the projection dimension (c).
Cylinder head installed:
Plug or seal off precombustion chamber mounting bores toward combustion chamber (e.g. with rag), so that chips cannot get into the combustion chamber.
Screw protective sleeve off of countersinking tool 601 589 00 66 00.
Screw countersinking tool 601 589 00 66 00 into the precombustion chamber mounting bore to be refinished down to the stop.

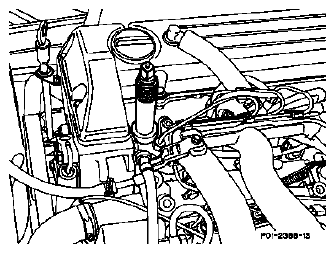

Fig 4: Identifying Countersinking Tool 601 589 00 66 00
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Measure interval "X" between top of shaft (01) and top of sleeve (02) and note value.
NOTE: When the cylinder head is installed, measuring the interval "X" replaces measuring the projection dimension "C".

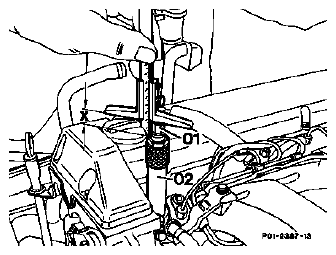

Fig 5: Measuring Interval "X" Between Top Of Shaft And Top Of Sleeve And Note Value
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Attach tap wrench to countersinking tool 601 589 00 66 00 and turn countersinking tool clockwise approx. 5 rotations while exerting light pressure.
Do not lift countersinking tool while refinishing.

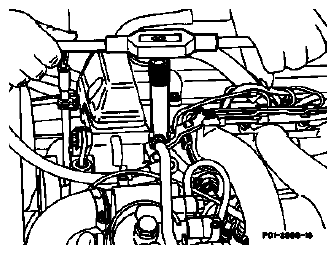

Fig 6: Turning Countersinking Tool Clockwise Approx. 5 Rotations While Exerting Light Pressure
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Measure dimension "X" again. The difference between the first and second measurements corresponds to the material removed.
Determine thickness of spacer ring:

Example:

Calculate material removed

Dimension before refinishing = 25.7 mm

Dimension after refinishing = 25.5 mm

Material removed = 0.2 mm

NOTE: In this example the thickness of the spacer ring to be installed is 0.3 mm. Select the spacer ring so that it is at least 0.1 mm thicker and max.

0.3 mm thicker than the amount of material removed.
Screw out countersinking tool 601 589 00 66 00 and remove chips.
NOTE: If sealing surface is not completely flat, screw countersinking tool in again and refinish sealing surface again. Then repeat measurement, steps 5 and 7.
Remove rag from precombustion chamber bore and turn over engine with starter to throw out any chips which may have got into the combustion chamber.
Insert proper spacer ring.
Mark cylinder head with punch mark above each precombustion chamber seat refinished (arrows).
Install in opposite order.

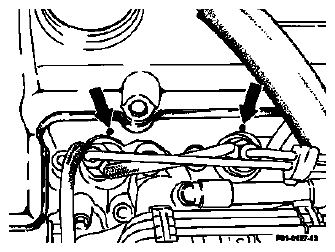

Fig 7: Locating Punch Mark Above Each Precombustion Chamber Seat Refinished
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
