Cranking engine with starter (model 140 engine 104) - ra0100104c110x(0110)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140 Engine 104
C. Model 140
Preceding work:
Warning instructions when hood open (01-0085) .
| Cover on left over DI ignition control module | take off, fit on. |

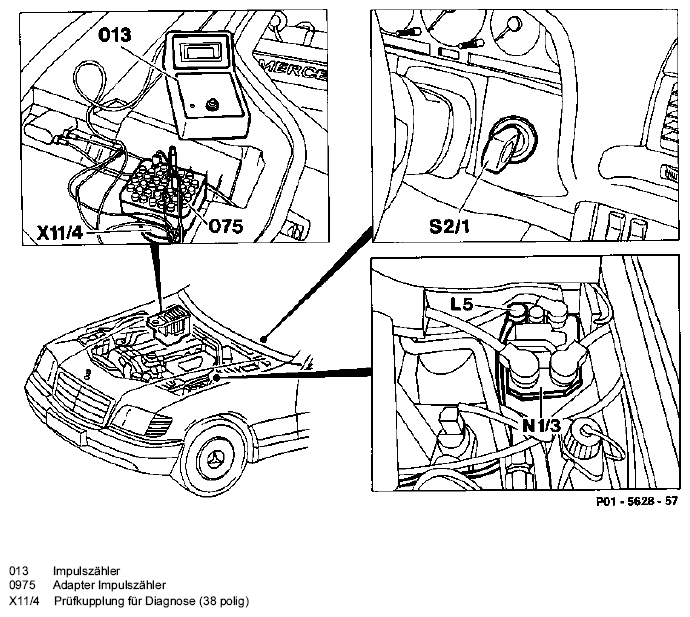

| Connector of crankshaft position sensor (L5) AT DI ignition control module (N1/3) | pull off, fit on. |
| Engine | crank by means of ignition/starter switch (S2/1). |
| DI ignition control module (N1/3) fault memory | read (see Diagnosis Manual Engine Volume 2, Index 0).
NOTE:
If the engine is started with the crankshaft position sensor (L5) unplugged, a fault is stored in the DI ignition control module (N1/3) fault memory (contact 17, pulse readout 17). This fault must be erased after completing work.
|
