Removal and installation of the inner sealing bar - ra72001400160x(0160)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Door liner removed (Removal and installation of the lining on the driver's door )

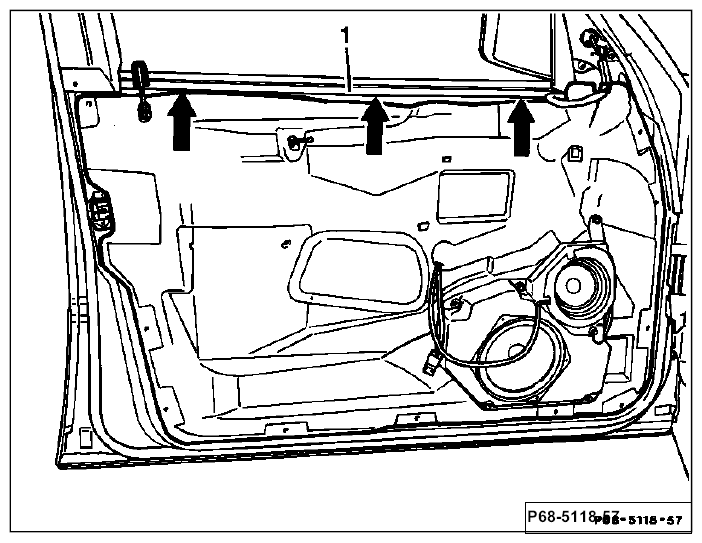

| Sealing bar (1) | pry out of interior door panel with plastic wedge starting at rear. |
| Reinstall | in opposite order. |
Special tool
