Pressing off and pressing in radial sealing ring at rear axle housing from the side - AR35.31-P-0540-05B

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
    SPECIAL TOOL Replace radial sealing ring and coat the sealing lip with universal hypoid gear oil: ↓
REFER TO CAPACITIES & SPECIFICATIONS   Universal hypoid gear oils (SAE 85 W-90) BB00.40-P-0235-07A
Fig 1: Identifying Alignment Tool (140 589 06 15 00)
G04636348Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    Pressing off

  1. Press radial seal ring (32) out of the housing (50) using a suitable screwdriver.

    2. Pressing in

  2. Coat sealing lip of radial sealing ring with universal hypoid gear oil.
  3. Press in radial sealing ring (32) using assembly alignment tool (032b).

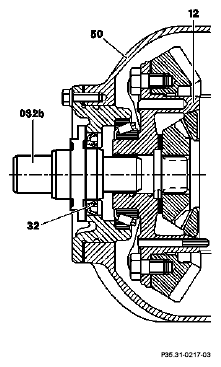

    Fig 2: Identifying Radial Sealing Ring At Rear Axle Housing
    G04636349Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
