Removal and installation of the glove compartment cover - ra68001400120x(0120)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 140
Preliminary work:
Glove compartment removed (Removal and installation of the glove compartment )

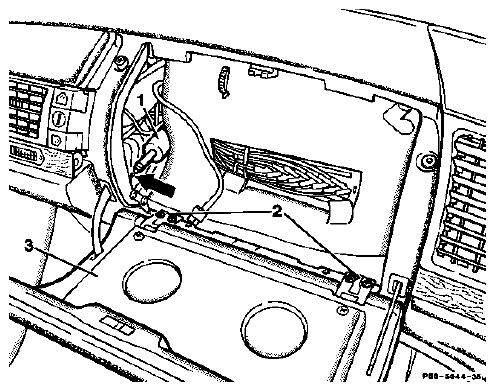

| Chain for damping device (1) on stop lever | unhook (arrow). |
| Screws (2) on hinges | screw out (4 each). |
| Glove compartment cover (3) | remove, move stop levers out on left and right. |
| Reinstall | in opposite order. |
| Glove compartment cover adjustment | check, adjust. |
