Removing and installing air pump belt pulley - AR14.30-P-7252F
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 119.97, 120.98
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Remove poly V-belt, install | see Repair Instructions Engine Mechanicals II Engine 119 or Engine 120, Op. no. 13-3420 |
||
| Nut | counter-hold with hexagon socket (arrow) when screwing on | ||
| *BA14.30-P-1001-01A | |||

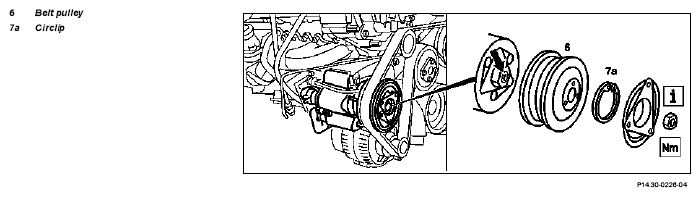

| 6 | Belt pulley | ||
| Spacer ring of belt pulley | Engine 120.980 | BT14.30-P-0001-01A | |
| Diameter of air pump belt pulley modified | Engine 119.97 | BT14.30-P-0004-01A |
| Number | Designation | Engine 119 | Engine 120 | |
|---|---|---|---|---|
| BA14.30-P-1001-01A | Nut of belt pulley to air pump | Nm | 35 | 35 |
