Removing and installing air pump belt pulley - AR14.30-P-7252D
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINES 104.941/942/943/944/991/992/994
ENGINES 111.92/94/96
| Fig. item, etc. | Work instructions | ||
|---|---|---|---|
| Remove poly V-belt, install | See RI Engine Mechanicals II Op. no. 13-1200 engine 104 Op. no. 13-1202 engine 111 |
||

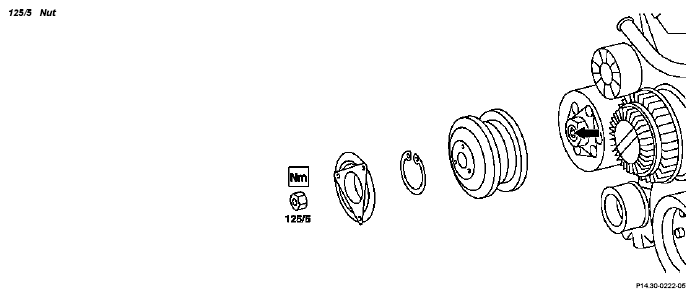

| 125/5 | Nut | Counter-hold with allen wrench (arrow) when slackening | |
| *BA14.30-P-1001-01A |
| Number | Designation | Engine 104 | |
|---|---|---|---|
| BA14.30-P-1001-01A | Nut of belt pulley on air pump | Nm | 35 |
