Removing and installing air pump - AR14.30-P-7251E
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 119.97
| Removal, installation | |||

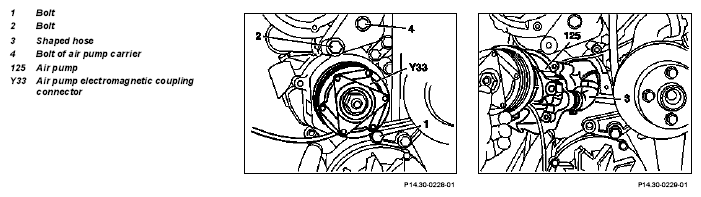

| 1 | Remove poly V-belt, install | see Repair Instructions Engine Mechanicals II Engine 119, Op. no. 13-3420 |
|
| 2 | Unplug connector of air pump electromagnetic coupling (Y33) | ||
| 3 | Take off shaped hose (3) | ||
| 4 | Remove bolts (1, 2) | ||
| Fit washer of air pump attachment modified | BT14.30-P-0003-01A | ||
| 5 | Take off air pump carrier | ||
| *BA14.30-P-1002-01A | |||
| Material of air pump carrier modified | BT14.30-P-0002-01A | ||
| Material of air pump carrier modified | BT14.30-P-0002-01B | ||
| 6 | Take off distributor cap | To do this, take off cover for distributor | |
| 7 | Take off air pump (125) | ||
| 8 | Install in the reverse order |
| Number | Designation | Engine 119 | |
|---|---|---|---|
| BA14.30-P-1002-01A | Bolts of air pump carrier | Nm | 25 |
