Removal and installation of the exhaust manifold - ra14006023900x(3900)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 602.96, 603.96/97 TURBO (Model 463.3: for deviations see introductory notes)
Preceding work:
Removing and installing exhaust gas turbocharger (09-6020).
Operation no. of operation texts and work units or standard texts and flat rates: 14-3900

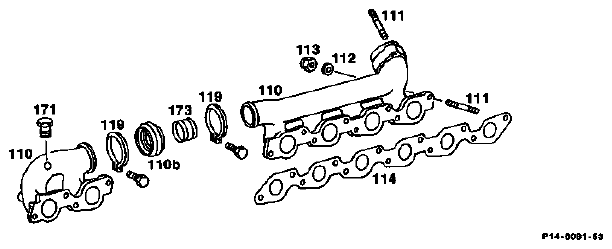

| Clip (119, 2 off) | slacken. |
| Nut (113, 12 off) | renew, 25 Nm. |
| Washer (112, 12 off) | remove, install. |
| Metal hose (110 b) | remove, install. |
| Pipe (173) | remove, install. |
| Screw plug (171) | remove, install. |
| Exhaust manifold (110) | 2-piece, remove, install. |
| Gasket (114) | renew. |
| Stud bolt in cylinder head (111, 12 off) | check, renew if required. |
NOTE:
Engines 602.962, 603.960/963/971
Tightening torque of exhaust manifold to cylinder head increased to 30 Nm.
PRODUCTION BREAKPOINT: AS OF SEPTEMBER 1994
| Model | Engine | Engine end no. Manual transmission | Engine end no. Automatic transmission |
|---|---|---|---|
| 124.128/188 | 602.962 | 032391 | 020186 |
| 124.133/193 | 603.960 | - | 052774 |
| 124.333/393 | 603.963 | - | 004483 |
| 140.134 | 603.971 | - | 012938 |
