Removal and installation of exhaust manifold - ra14lh1043915x(3915)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Operation No. of operation texts and operation values or standard texts and flat rates; 14-3915

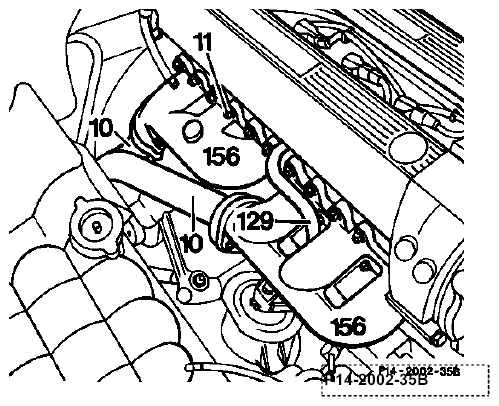

| Exhaust pipes (10) | at exhaust manifold, unscrew, screw on. |
| Installation instruction Install new rivet nuts in exhaust manifolds with caulking screw 103 589 01 39 00. Tightening torque 30 Nm as reference value. |
|
| Exhaust support | at transmission, unscrew, screw on. |
| Air injection pipe (129) | remove, install. To do this, unscrew fastening bolt for air injection pipe at cylinder head, screw on. Unscrew retaining clip of air injection pipe, screw on. Detach hose from air pump, fit on. |
| Self-locking nuts (11) | unscrew, screw on, renew. |
| Exhaust manifold (156) | remove, insert. |
| Installation instruction Clean sealing surface. Apply dots of sealant A 001 989 25 20 on new gaskets (closed metal surface facing cylinder head). |
|
| Leak tightness of connections | examine with engine running. |
Special tool
