Removal and installation of air injection relay - ra14lh1047253x(7253)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Operation No. of operation texts and operation values or standard texts and flat rates; 14-7253
| Ground cable at battery | disconnect, connect. |

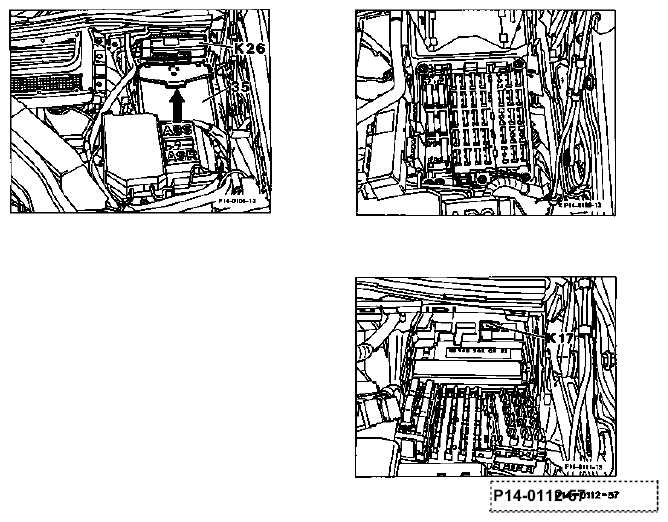

| Cover (35) of fuse box | take off, fit on. |
| To do this, pull handle (arrow) up, to fit on, push handle down until it engages. | |
| Wiper system relay (K26) | withdraw to the front, push in. |
| Frame of fuse and relay box | take off, fit on. Unscrew six fastening screws for this purpose. |
| Air injection relay (K17) | take off, fit on. |
