Replacing end cover in camshafts - RA05001042220X(05-2220)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Camshafts removed (05-2200)
Operation no. of operation texts and work units or standard texts and flat rates:
| Cover (1) | prise out with a screwdriver. |
| Hollow-drilled camshaft (26) | clean. |
| Bore (B) | inspect (see table for dimensions). |

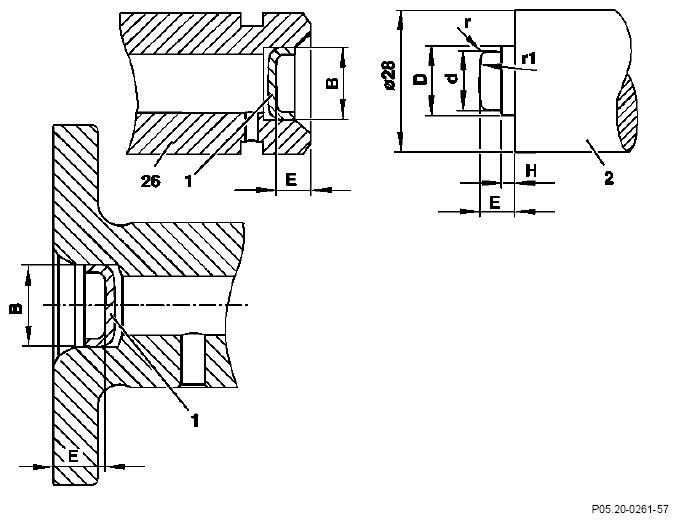

| End cover (1) | knock in with drift (2) (shop-made tool). Use new end cover (1). The end cover must not be seated on the end of the bore. It is essential to maintain the insertion depth (size E). |
DATA IN MM
| Camshaft (26) | Inlet, exhaust at rear | |
| Bore (B) | 14.00 - 14.04 | |
| End cover DIN 443 (1) | A14 | |
| Insertion depth size (E) | 9.3 | |
| Insertion drift (2) dimensions (shop-made) | d | 11.7 |
| D | 13.7 | |
| H | 4,3 | |
| r | 1 | |
| r1 | 35 |
