Removing and installing tensioning rail - RA05001193300X(05-3300)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Right camshaft adjuster removed (05-2170) .
Belt pulley/vibration damper removed (03-3420) .
Operation no. of operation texts and work units or standard texts and flat rates 05-8126

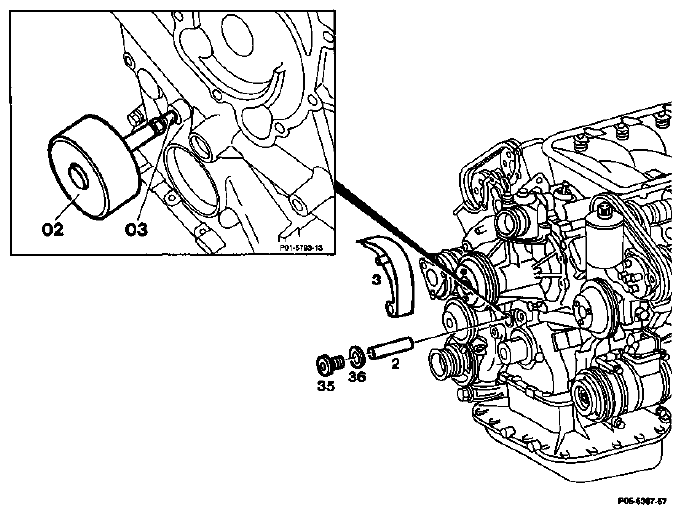

| Screwplug (35) with seal (36) | unscrew, screw on (10 Nm). Installation note Replace seal (36) according to condition. |
| Tensioning rail pin (2) | pull off with impact extractor (02) and threaded insert (03), special tools 116 589 20 33 00 and 116 589 02 34 00. |
| Tensioning rail (3) | pull out of chain housing, insert. |
| Tensioning rail pin (2) | push in.
NOTE:
Insertion size: pin to sealing ring contact (timing case cover), maintain 10 mm.
|
