Removing and installing tensioning rail - RA05001043300X(05-3300)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Timing case cover removed (01-2100) .

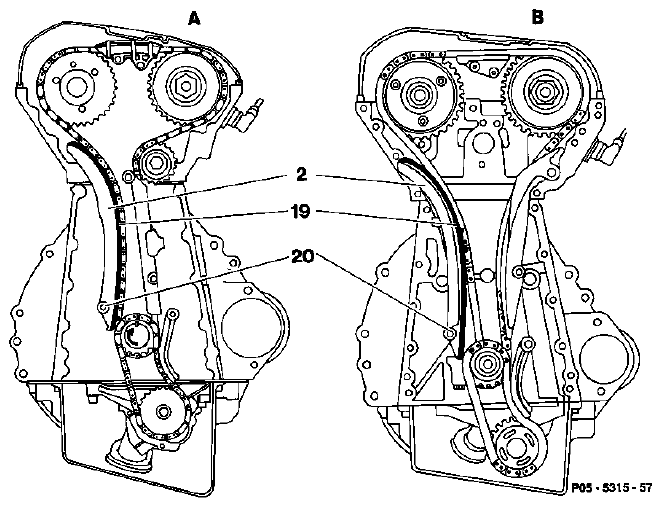

| A Motor 104.98 | B Motor 104.94/99 |
| Crankshaft sprocket | mark relative to timing chain with coloured marking. |
| Tensioning rail (2) | pull off bearing pin (20). |
| Tensioning rail (2) | install. Pay attention to coloured markings. Check basic position of camshaft, if necessary (05-2230) .
NOTE:
The plastic guide (19) (running surface) is clipped into the tensioning rail (2) and can be replaced separately. The bearing pin (20) is knocked into the crankcase. Projection 28 mm. The all-plastic tensioning rail (2nd version) can be used in place of the 1st version. |
