Removing and installing guide rail in crankcase - RA05001043350X(05-3350)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Timing case cover removed (01-2100) .
Engine 104.98

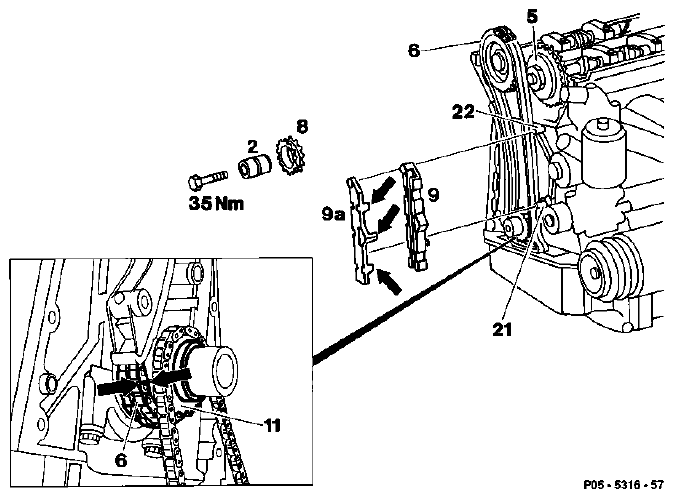

| Crankshaft sprocket (11) | mark relative to timing chain (6) with coloured marking (arrows). |
| Guide sprocket (8) | remove, install (05-4400) . |
| Timing chain (6) | lift off at inlet camshaft sprocket (5), fit on. Pay attention to coloured marking. |
| Retaining lugs (arrows) guide rail outer part (9a) | unclip, remove, install. |
| Guide rail inner part (9) on guide rail pins (21) and (22) | pull off, install. Pay attention to coloured marking (arrows) on crankshaft sprocket (11); check basic setting of camshafts if necessary (05-2230) . |
NOTE:

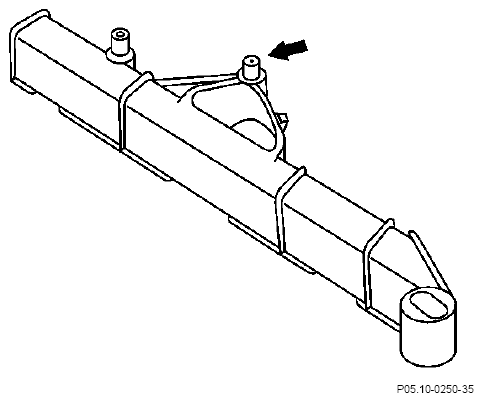

The guide rail 104 052 02 16 (2nd version) with mounting pin and oil drilling (arrow) should be used on crankcases with mounting drilling.
The guide rail 104 052 06 16 (1st version) without mounting (arrow) must only be used on crankcases without a mounting hole at this point.
