Matching bolts to camshaft - RA05001042180X(05-2180)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Bolts of flanged shaft to inlet camshaft

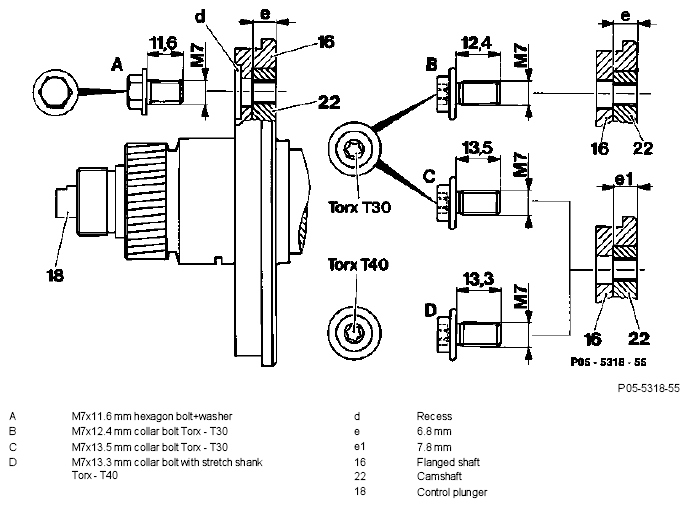

Fig 1: Identifying Bolts Of Flanged Shaft To Inlet Camshaft
G04677474Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Bolt Tightening torque Engine
Part number standard Part number repairs   as of up to
A A 18 Nm   980 10/50, 20/60 005422
104 990 03 22 104 990 03 22     980 12/52, 22/62 023613
        981 10/50, 20/60 001035
        981 12/52, 22/62 010154
B B 22 Nm 980 10/50, 20/60 005423 980 10/50, 20/60 005791
120 990 05 04 104 990 05 04   980 12/52, 22/62 023614 980 12/52, 22/62 025653
      981 10/50, 20/60 001036 981 10/50, 20/60 001133
      981 12/52, 22/62 010155 981 12/52, 22/62 010893
C C 22 Nm 980 10/50, 20/60 005792 980 10/50, 20/60 007619
120 990 01 04 120 990 01 04 20 Nm+60°(1) 980 12/52, 22/62 025654 980 12/52, 22/62 035763
  D   981 10/50, 20/60 001134 981 10/50, 20/60 001913
  120 990 02 04   981 12/52, 22/62 010894 981 12/52, 22/62 016058
        990 10/50, 20/60 000567
        990 12/52, 22/62 022721
D (2) D (2) 20 Nm+60° (1) 980 10/50, 20/60 007620
120 990 02 04 120 990 02 04   980 12/52, 22/62 035764
      981 10/50, 20/60 001914
      981 12/52, 22/62 016059
      990 10/50, 20/60 000568
      990 12/52, 22/62 022722
(1) It is not permitted to re-use bolt
(2) Engines 104.941/942/943/944/945/991/992/994/995/996 as of start of production

Bolts of camshaft sprocket to exhaust camshaft

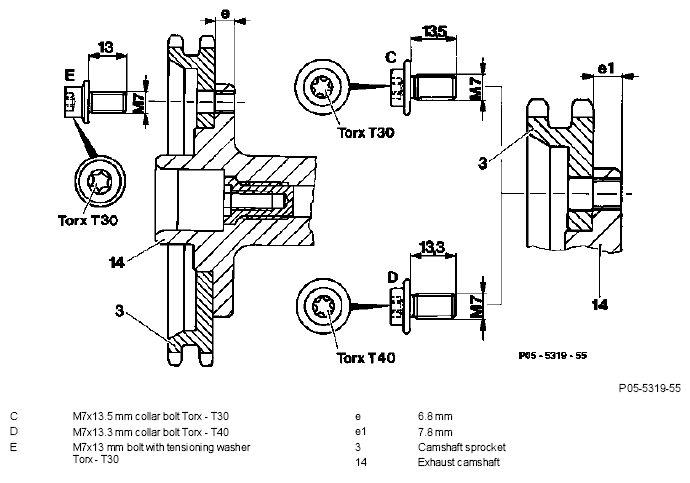

Fig 2: Identifying Bolts Of Camshaft Sprocket To Exhaust Camshaft
G04677475Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Bolt Tightening torque Engine
Part number standard Part number repairs   as of up to
E E 18 Nm   980 10/50, 20/60 005731
103 990 00 22 103 990 00 22     980 12/52, 22/62 025192
        981 10/50, 20/60 001111
        981 12/52, 22/62 010734
        990 10/50, 20/60 000080
        990 12/52, 22/62 001015
C C 22 Nm 980 10/50, 20/60 005732 980 10/50, 20/60 007619
120 990 01 04 120 990 01 04 20 Nm+60°(1) 980 12/52, 22/62 025193 980 12/52, 22/62 035763
  D   981 10/50, 20/60 001112 981 10/50, 20/60 001913
  120 990 02 04   981 12/52, 22/62 010735 981 12/52, 22/62 016058
      990 10/50, 20/60 000081 990 10/50, 20/60 000567
      990 12/52, 22/62 001016 990 12/52, 22/62 022721
D(2) D(2) 20 Nm+60°(1) 980 10/50, 20/60 007620
120 990 02 04 120 990 02 04   980 12/52, 22/62 035764
      981 10/50, 20/60 001914
      981 12/52, 22/62 016059
      990 10/50, 20/60 000568
      990 12/52, 22/62 022722
(1) It is not permitted to re-use the bolt
(2) Engines 104.941/942/943/944/945/991/992/994/995/996 as of start of production
