Inspecting valve springs - RA05001192600X(05-2600)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Valve springs removed (05-2500)
Operation no. of operation texts and work units or standard texts and flat rates
| Valve springs | clean. Replace valve springs which are not to dimensional tolerance, are corroded, have surface rust, mechanical damage or worn at the ends. |
| Color coding on valve springs | check, match, see table. |
| Spring force | measure at pretensioned length. If the valve springs do not achieve the specified spring force, they cause a loss of frictional connection at high engine speeds and should be replaced. |
DATA FOR M119

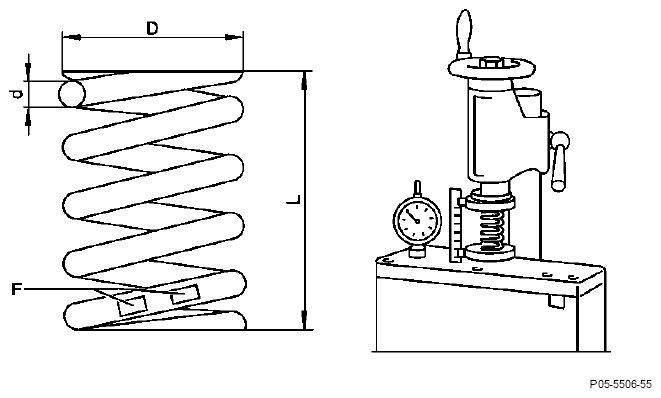

| Valve spring part no. | Color coding (F) | Outer Ø (D) mm | Wire Ø (d) mm | Length untensioned (L) mm | Length L1 and L2 initially tensioned spring force in N | ||
|---|---|---|---|---|---|---|---|
| L1 / N | L2 / N | ||||||
| 1st version cylindrical-shaped | 119 053 01 20 (outer) | yellow/blue | 29.6 | 3.9 | 40 | 33 / 225 | 23 / 575 |
| 1st version cylindrical-shaped | 119 053 01 22 (inner) | yellow/blue | 20.7 | 2.4 | 41.6 | 30 / 100 | 20 / 205 |
| 2nd version conical-shaped | 119 053 02 20 | purple or | 24.42 | oval | 40.8 | 33 / 250 | 23.5 / 630 |
| yellow/blue | 30.22 | ||||||
| 2nd version conical-shaped | 119 053 08 20 | purple/blue | 23.40 | 3.7 | 40.1 | 33 / 250 | 24.1 / 600 |
| 29.20 | |||||||
| 2nd version conical-shaped | 119 053 04 20 | purple or | 23.76 | oval | 41.9 | 33 / 210 | 24.5 / 465 |
| yellow/red | 29.56 | ||||||
| 2nd version conical-shaped | 119 053 09 20 | yellow/green | 23.00 28.80 | 3.5 | 41.7 | 33 / 220 | 24.5 / 475 |
| 2nd version conical-shaped | 119 053 07 20 | purple/white | 22.80 | 3.4 | 41.9 | 33 / 210 | 24.5 / 465 |
| 28.60 | |||||||
