Armature and servo magnet at camshaft adjuster - RA05001042175X(05-2175)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

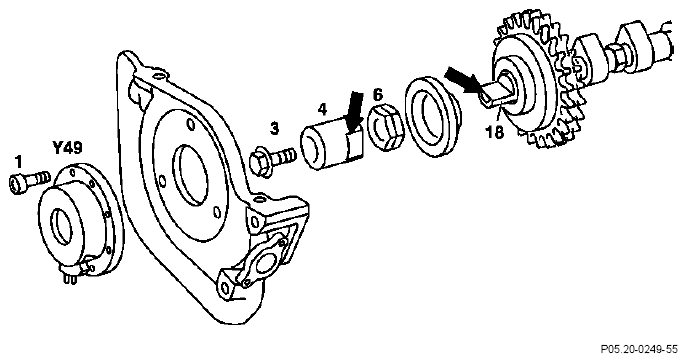

| Servo magnet (Y49) | unbolt, bolt on. |
| Solenoid | coat with sealant 002 989 00 20. |
| M6 X 16 bolts (1) | tighten. |
| Front cover (7) | remove, install (05-2170) . |
| Armature (4) with M5 X 11 bolt (3) | unbolt, bolt on; counter-hold armature (4) at the flat (arrow). See table for tightening torque. Armature (4) can be fitted onto control plunger (18) only in the specified position (arrow).
NOTE:
The armature (4) with the control plunger (18) must move freely from stop to stop after the nut (6) has been tightened to the specified torque of 65 Nm.
|
The different versions of the armature (4) and of the solenoid (2) must only be installed in the specified matching for operational reasons (see table for matching). |

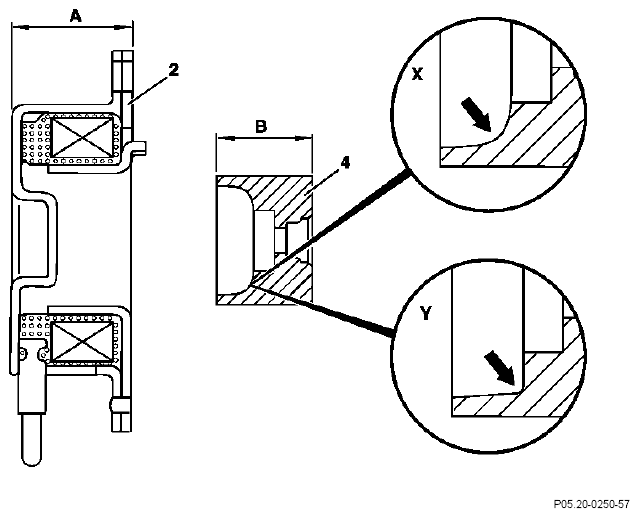

MATCHING ARMATURE AND SERVO MAGNET
| 1st version | Part no. | Size A in mm | Size B in mm | Identification | |
| Armature (4) | 104 051 04 43 | - | 21 | see arrow X | |
| Servo magnet (2) | 104 050 01 77 | 27.1 | - | - | |
| 2nd version | |||||
| Armature (4) | 119 051 00 43 | - | 23 | see arrow Y | |
| Servo magnet (2) | 119 051 00 77 | 29.1 | - | - |
TIGHTENING TORQUES IN NM OR TIGHTENING ANGLE
| Bolt of armature to control plunger | 1st version (1) bolt+washer | 7 | ||||
| 2nd version(2) collar bolt tightening angle | 5+ | |||||
| 90° | ||||||
| Bolts of solenoid to front cover | 10 | |||||
|
||||||
