0285 - Checking and replacement of the valve guides - ra05006010285x(0285)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engines 601, 602 (except 602.98), 603

Preceding work:

Cylinder head removed (01-415).

Valve springs removed (05-250).

Valves removed.

Operation no. of operation texts and work units or standard texts and flat rates 05-3731

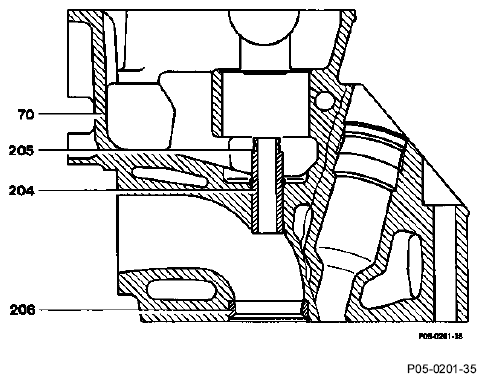

Fig 1: Identifying Valve Guides Location

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Checking
Seat for valve stem seal (205)	check. Replace valve guide (204) if valve stem seal is loose.
Valve guide (204)	clean. Cylindrical brush 000 589 10 68 00.
Valve guide (204) inside dia.	check. Plug gauge: 102 589 00 23 00 intake, 117 589 03 23 00 exhaust. Replace valve guide, if reject pin of plug gauge fits completely in the valve guide.
Replacement
Valve guide (204)	drive out, drive home. Drift: 103 589 03 15 00 intake, 103 589 02 15 00 exhaust. Punch: 601 589 06 15 00 intake, 601 589 02 15 00 exhaust. Ream, Reamers: 000 589 21 53 00 intake 000 589 10 53 00 exhaust
Basic bore of valve guide in cylinder head (70)	check. If required bore out to next repair size. Broach (14.20 mm) 115 589 00 53 00. Guide sleeves: 102 589 00 63 00 intake, 102 589 08 63 00 exhaust. Broach (14.40 mm) 115 589 01 53 00 Guide sleeve 601 589 15 63 00.
Valve seat insert (206)	check for eccentricity (05-291).

VALVE GUIDES (GREY CAST IRON)

	Version and Part No.	Outside dia. (D)	Color marking	Basic bore in cylinder head	Overlap	Valve guide inside dia. (A)	Length (L)
Intake	Repair size I 601 050 07 24	14.240-14.251	red	14.200-14.211	0.029-0.051	8.000-8.030	39.5
Intake	Repair size II 601 050 08 24	14.440-14.451	white	14.400-14.411	0.029-0.051	8.000-8.030	39.5
Exhaust	Repair size I 601 050 10 24	14.240-14.251	red	14.200-14.211	0.029-0.051	9.000-9.050	37.7
Exhaust	Repair size II 601 050 11 24	14.440-14.451	white	14.400-14.411	0.029-0.051	9.000-9.050	37.7

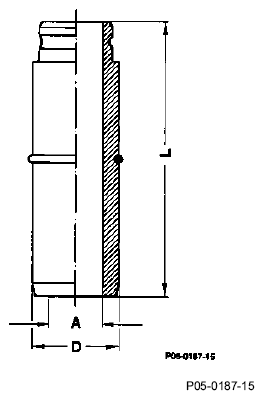

Fig 2: Identifying Valve Guides Dimension

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Special tools

Fig 3: Identifying (000 589 10 68 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying (103 589 03 15 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying (103 589 02 15 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying (601 589 06 15 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Identifying (601 589 05 15 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Identifying (102 589 00 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Identifying (117 589 03 23 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 10: Identifying (000 589 21 53 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 11: Identifying (000 589 10 53 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 12: Identifying (115 589 00 53 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 13: Identifying (102 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 14: Identifying (102 589 08 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 15: Identifying (601 589 15 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 16: Identifying (115 589 01 53 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

COMMERCIALLY AVAILABLE TOOLS AND TESTERS

Designation	e.g. Make	Order no.
Cylinder head clamping device	Hunger D-81375 M nchen Gr flingerstr. 146	221.60.000

Broach base bore in cylinder head (Repair stage)

Decarbonize and clean cylinder head perfectly, particularly the inside of the valve seat inserts. Select correct guide sleeve (2) and remove swarf from the cutters of the broach (1) with a stiff plastic brush or the like.

NOTE: The broach cutters must be cleaned before each broaching operating.

Provide guide sleeve, basic bore and complete broach with ample supplies of paraffin.

Insert broach into the guide sleeve so that when the guide sleeve rests on the valve seat insert (3) the first cutter of the broach is located in the base bore. In so doing note that the correct side of the guide sleeve is put on the valve seat.

Centre guide sleeve by rotary movements in the valve seat insert.

NOTE: Drive the broach briskly through with an aluminum mandrel, approx. 130 mm long, and a plastic hammer of approx. 250 g.

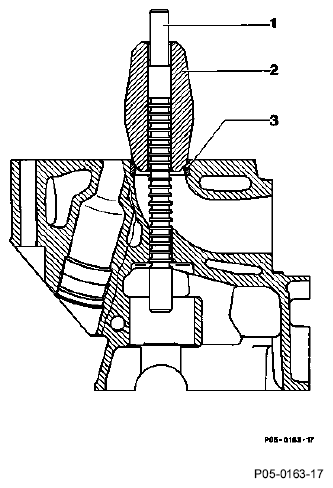

Fig 17: Identifying Guide Sleeve And Broach

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

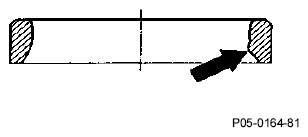

NOTE: The high spot (arrow) on the intake valve seat inserts is to be removed before inserting the guide sleeve.

Fig 18: Locating High Spot Area

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Inserting valve guide

Drive home valve guides with punch and hammer, when the valve guides are not super cooled and the cylinder head is not heated up. Coat valve guides with tallow or oil before driving home.

ASSIGNMENT OF GUIDE SLEEVE - VALVE SEATS

Valve seat	Guide sleeve Part No.	Basic bore dia. in cylinder head
Intake	102 589 00 63	00 14.2 mm
Exhaust	102 589 00 63	00 14.2 mm
Intake	601 589 15 63 00	14.4 mm
Exhaust	601 589 15 63 00	14.4 mm
