Replacing piston rings - RA03001193170X(03-3170)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Pistons removed (03-3160) .

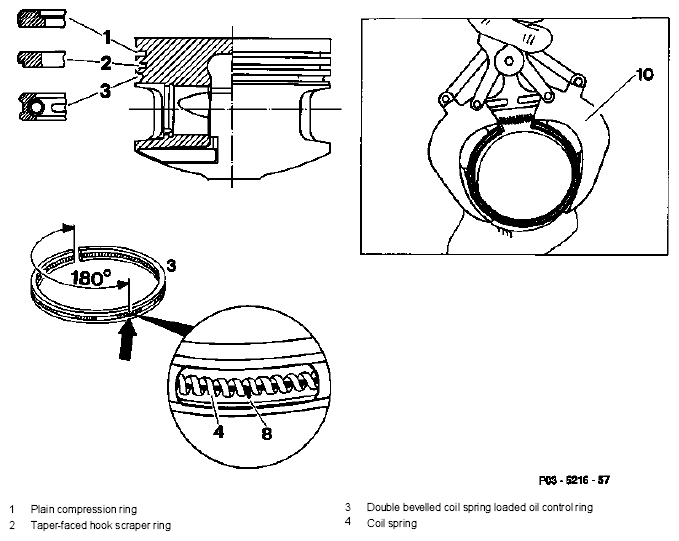

Fig 1: Identifying Plain Compression Ring, Taper-Faced Hook Scraper Ring And Coil Spring
G04677144Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
End clearance of piston rings measure.
Piston rings remove with pliers (10), install, special tool 000 589 51 36 00.
NOTE: Pay attention to installation position, "Top" faces up. Hooked spring (8) in oil scraper ring (3) is installed offset 180° to joint (arrow).

Special tool

Fig 2: Identifying Special Tool (000 589 51 37 00 03)
G04677145Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
TEST DATA IN MM

End clearance of piston rings Groove 1 0.05 - 0.08
Groove 2 0.01 - 0.03
Groove 3 0.01 - 0.04
