Replacing front crankshaft radial seal - RA03001193240X(03-3240)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Belt pulley, vibration damper and hub removed (03-3420) .

Operation no. of operation texts and work units or standard texts and flat rates

03-3000 - 01-3112

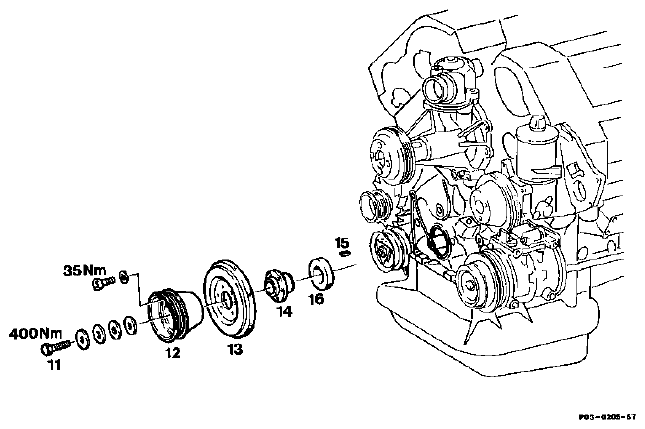

Fig 1: Identifying Belt Pulley, Vibration Damper And Radial Seal

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Belt pulley (12), vibration damper (13) and remove, hub (14)	remove, install (03-3420) .
Radial seal (16)	remove (step 2).
Mounting bore	clean, deburr.
Sealing lip of radial seal (16)	oil (step 4).
Radial seal (16)	install with insertion sleeve, special tool 119 589 01 14 00 (step 5). Pay attention to installation position in the case of hubs (14) with running marks (step 6).
Leaks	check with engine running.

Special tool

Fig 2: Identifying Special Tool (119 589 01 14 00 03)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

NOTE: An oil leak can be determined after spraying the dried and cleaned surrounding area with Mercedes-Benz white contrast spray 000 989 03 59.

Check hub of belt pulley for running marks.
If running marks are present, install radial seal offset 3 mm to the inside (see step 6).

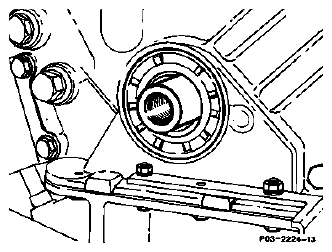

Fig 3: Identifying Running Marks In Hub Of Belt Pulley
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Lever out radial seal with a screwdriver.

Do not damage crankshaft and mounting bore for the radial seal, use clean cloths as a base.
Deburr edge of mounting hole for the radial seal.
Oil sealing lip of the radial seal.

Do not use grease. Grease prevents the angled webs on the sealing lip transporting back the engine oil.

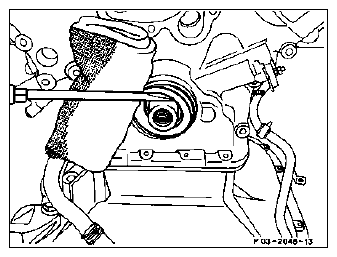

Fig 4: Removing Radial Seal
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fit radial seal (16) onto the side a of the insertion sleeve 119 589 01 14 00 and draw in as far as the stop with bolt (11) and 4 Belleville spring washers (11a).

The radial seal (16) must be at right angles to the hub otherwise it will not provide a proper seal.
If the hub has running scores, position radial seal (16) 3 mm offset to the inside.
To do this, fit radial seal (16) onto the side b of the insertion sleeve 119 589 01 14 00 and draw in as far as the stop.

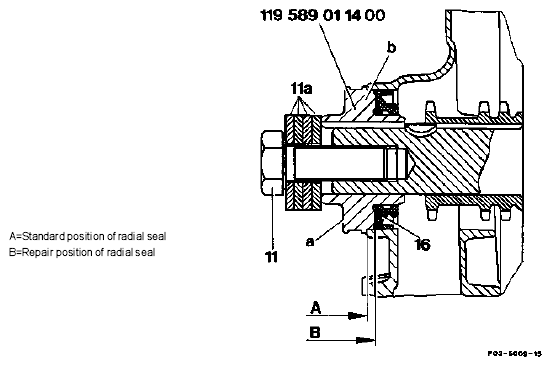

Fig 5: Identifying Standard And Repair Position Of Radial Seal
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Install belt pulley, vibration damper and hub (03-3420) .
Run engine and check for leaks.
