Replacement of the rear crankshaft radial sealing ring Engines - ra03006010327x(0327)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

601, 602 (except 602.98), 603

Preceding work:

Transmission removed (26-020 or 27-600).

Operation no. of operation texts and work units or standard texts and flat rates 03-3063

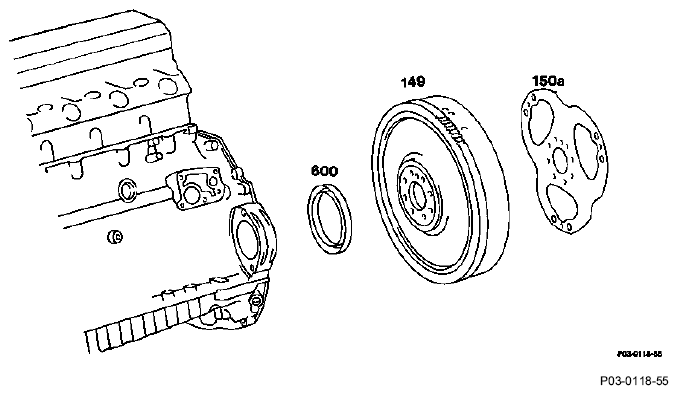

Fig 1: Identifying Rear Crankshaft Radial Sealing Ring

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Flywheel (149) and driven plate (150a)	remove, install, (03-410) (items 1, 9).
Crankshaft radial seal (600)	remove, renew. Check running surface on crankshaft flange, clean mounting bore, coat sealing lip of crankshaft radial seal with oil and press in with special tool 601 589 03 43 00 (items 2 - 8).
	Assure that radial seal is seated properly.
Crankshaft radial seal (600)	check for leakage with engine running (item 10).

NOTE: The repair sealing rings offset 3 mm to the inside is no longer supplied as a replacement part.

If the crankshaft shows signs of wear at the rear, the sealing ring must be pressed in a further 3 mm. Use the insertion sleeve 111 589 08 43 03, part of basic tool

111 589 08 43 00, for this step.

Special tools

Fig 2: Identifying Special Tool (111 589 08 43 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tool (601 589 02 40 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Special Tool (001 589 66 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

NOTE: Since 09/94 an end cover with integrated shaft seal (version B) has been fitted to engine 601, 602, 603. End cover and shaft seal are a unit; the shaft seal is vulcanized in the cover.

When performing repairs, install the previous version of radial shaft seal and end cover.

Fig 5: Identifying Radial Shaft Seal And End Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Renewal

Remove flywheel or flywheel and driven plate (03-410).

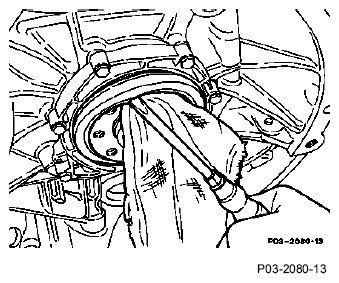

Press crankshaft radial seal out of end cover with screwdriver.
Do not damage crankshaft flange or end cover. Cover crankshaft flange with rag.

Fig 6: Removing Flywheel And Driven Plate
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Check running surface for crankshaft radial seal on crankshaft flange for damage.
Clean mounting hole for crankshaft radial seal, deburr, if required.
Screw inner part of installation tool 111 589 03 43 00 onto crankshaft flange.

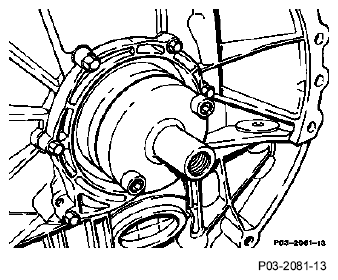

Fig 7: Identifying Crankshaft Radial Seal, Crankshaft Flange And Mounting Hole
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Coat sealing lip of crankshaft radial seal and opposite running surface lightly with oil, do not use grease.
Slide crankshaft radial seal (arrow) over inner part of installation tool 111 589 03 43 00.

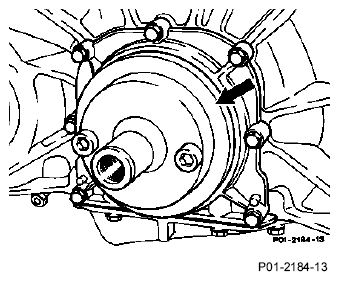

Fig 8: Locating Crankshaft Radial Seal
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Press crankshaft radial seal against stop in end cover with outer part of installation tool 111 589 03 43 00 or 111 589 08 43 03.
NOTE: Assure that crankshaft radial seal is properly seated.
Install flywheel or flywheel and driven plate (03-410).
Check for leakage with engine running.

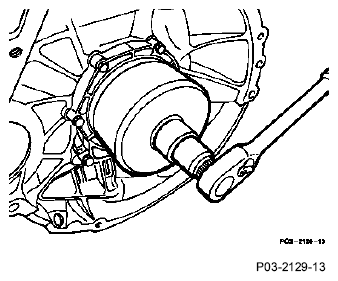

Fig 9: Pressing Crankshaft Radial Seal In End Cover

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
