Replacement of the flywheel ring gear - ra03006010430x(0430)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 601, 602 (except 602.98), 603
Preliminary jobs:
Flywheel and driven plate removed (03-410).
Operation No. of operation texts and operation values or standard texts and flat rates 03-8312

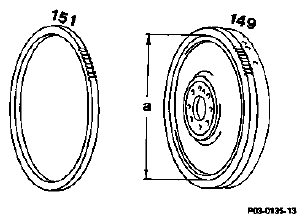

| Flywheel (149) | check, centering flange dia. (a) for ring gear 275.00+0.05 mm. Clean mounting surface for ring gear on flywheel before installing ring gear. |
| Ring gear (151) | drill hole into old ring gear and break up with a chisel or heat quickly and then remove immediately. Heat new ring gear and install on flywheel. Temperature for shrink fit 220°C. Lateral runout on ring gear max. 0.4 mm. |
COMMERCIALLY AVAILABLE TOOLS AND TESTERS
| Designation | e. g. make | Order no. |
|---|---|---|
| Temperature measuring chalk Color No. 2815/220 (white) thermochrome | AW Faber-Castell, 90547 Stein bei Nurnberg |
The ring gear is hardened. For this reason do not exceed 220°C at any point while heating with hot plate or heating furnace.
Use temperature measuring chalk in accordance with directions.
Use open flame only in exceptional cases.
Apply flame to inside of ring gear only.
After replacing ring gear, it is not necessary to balance the flywheel.
