Removing and installing two-mass flywheel - RA03001044620X(03-4620)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Manual transmission removed (26-020).
Clutch removed (25-050).
Retaining lock for crankshaft/ring gear installed (03-5000) .
Operation no. of operation texts and work units or standard texts and flat rates
03-8001, 03-8201

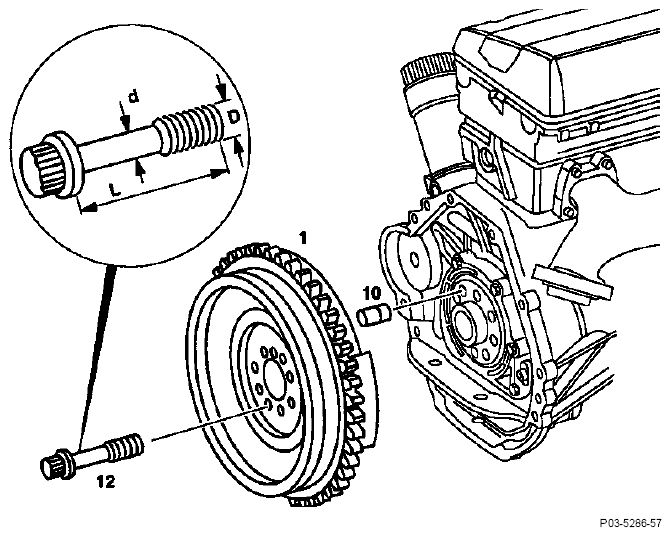

| Stretch bolts (12) (1st version) or straight stretch shank bolts (2nd version) or torx bolts (with sheet steel two-mass flywheel) | unscrew, screw on. |
| Stretch bolts (12) | inspect, see table.
NOTE:
If the shank Ø is less than the minimum Ø (d), replace stretch bolt (12).
|
| Straight stretch shank bolts or torx bolts | replace, see note. |
| Two-mass flywheel (1) or sheet steel two-mass flywheel | remove, install.
NOTE:
The installation position of the flywheel (1) is determined by the dowel pin (10).
|
STRETCH SHANK BOLT (1ST VERSION)
| Thread | D | M10 X 1 | |
| Stretch Ø shank | d | when new | 8.5-0.2 |
| minimum Ø | 8.1 | ||
| Bolt length | L | when new | 57±0.2 |
| Part no. | 103 032 00 71 | ||
| Tightening torque | 30 Nm+90° tightening angle | ||
| 1) Thread and bolt head contact surface moistened with assembly oil | |||
STRAIGHT STRETCH SHANK BOLT (2ND VERSION)
| Thread | D | M10 X 1 | |
| Bolt length | L | 57±0.2 | |
| Part no. | 111 032 00 71 | ||
| Tightening torque | 45 Nm+90° tightening angle | ||
| 1) Thread and bolt head contact surface moistened with assembly oil | |||
TORX BOLT (WITH SHEET STEEL TWO-MASS FLYWHEEL AS OF 05/1995)
| Thread | D | M10 X 1 | |||
| Bolt length | L | 28.5 ± 0.2 | |||
| Tightening torque (1) | 45 Nm+90° tightening angle | ||||
|
|||||
NOTE:
The straight stretch shank bolt should be replaced when performing repairs; it must be used only once.
As of May 1995 the bolts of the driven plate and two-mass flywheel (sheet steel two-mass flywheel) have been standardized. The torx bolt (3rd version) should be replaced when performing repairs.
Special tools
NOTE:
If no tightening angle torque wrench is available, the stretch shank bolts or straight stretch shank bolts can be torqued further to the specified angle in a single operation with a wrench socket and tommy bar. A flexi-rod torque wrench must not be used for tightening to tightening angles in order to avoid any angle errors. For design of two-mass flywheel see "Function of two-mass flywheel (03-4600) ".
