Removing and installing retaining lock for crankshaft/ring gear - RA03001195000X(03-5000)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

With transmission installed

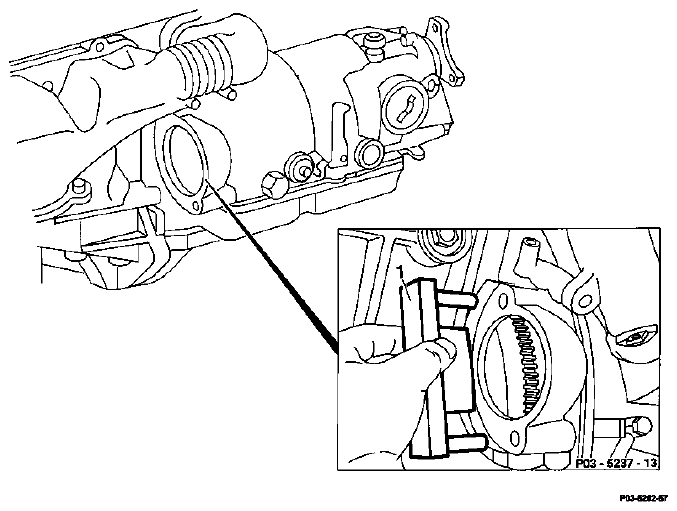

Fig 1: Identifying Retaining Lock Position

G04677197

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 124, 129, 140: left front exhaust cross pipe	remove, install (49-0170) .
Cover at left starter recess	remove, install.
Retaining lock (1)	insert into ring gear until it engages, rotate crankshaft if necessary, special tool 116 589 01 40 00.

Special tool

Fig 2: Identifying Special Tool (116 589 01 40 00)

G04677198

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

With transmission removed

Preceding work:

Transmission removed (27-600) .

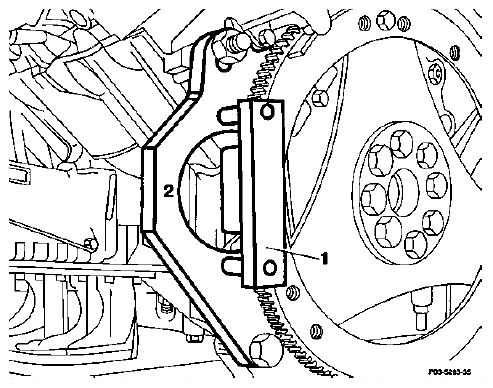

Fig 3: Identifying Retaining Lock And Bracket

G04677199

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Bracket (2) on left side of crankcase	bolt on, unbolt, special tool 119 589 00 40 00.
Retaining lock (1)	insert into bracket (2) and insert into ring gear until it engages, rotate crankshaft if necessary, special tool 116 589 01 40 00.

Special tools

Fig 4: Identifying Special Tool (116 589 01 40 00)

G04677200

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Special Tool (119 589 00 40 00)

G04677201

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
