Examining and repairing crankshaft - RA03001043180X(03-3180)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation no. of operation texts and work units or standard texts and flat rates

DATA IN MM

Crankshaft, Tolerances, and Part number see (03-3190)

Permissible out-of-roundness of crankshaft and conrod bearing journals

0,002

Permissible difference in cylinder shape over length of about 54 mm

conrod bearing journals

0,010

crankshaft bearing journals

0,010

Permissible axial runout of fit bearing

0,02

Fillet radii at the

crankshaft bearing journals

1,9 - 2,1

conrod bearing journals

1,9 - 2,1

Bearing journals ground and precision-lapped, max. peak-to-valley-height R_z (μm)

0,15

Crankshaft journal Ø at front

31,98 - 32,00

Permissible difference in concentricity of front crankshaft journal

⁽¹⁾⁽²⁾

0,05

Contact surface Ø for radial seal at rear

92,874 - 92,928

Permissible difference of rear crankshaft flange

radial ⁽¹⁾

0,04

axial ⁽¹⁾

0,015

Permissible difference in concentricity of crankshaft bearing journals ⁽¹⁾⁽³⁾

journals 2, 6

0,07

journals 3, 4, 5

0,14

Scleroscopic hardness of crankshaft and conrod bearing journals

when new

74 - 84

limit value

60 ⁽⁴⁾

Permissible imbalance of crankshaft when mounted in journals 2 and 6

100 gmm ⁽⁵⁾

⁽¹⁾	When crankshaft mounted on crankshaft bearing journals 1 and 7 and one full revolution.

⁽²⁾	If measurement made when crankshaft installed, eliminate radial bearing play by applying pressure to crankshaft journal.

⁽³⁾	When crankshaft mounted on the crankshaft bearing journals in front of and behind the crankshaft bearing journal to be measured and one full revolution, permissible difference 0.04.

⁽⁴⁾	The limit value must exist at least 2/3 of the circumference of the journal.

⁽⁵⁾	Related to 1st and 12th balancing weight at 550 rpm when mounted on 2nd and 6th crankshaft bearing journals.

NOTE: Maximum wear limit of crankshaft and conrod bearing journals 0.02 mm. The repair sizes listed in the table should be adhered to exactly. When re-grinding, it is essential to maintain the fillet radii at the crankshaft and conrod bearing journals.

All the radii of the conrod and crankshaft bearings are inductively surface-hardened, at the 2nd, 3rd, 4th, 5th and 6th crankshaft bearings.

The running surface for the rear radial seal is inductively hardened to a depth of about 1 - 2 mm.

Special tool

Fig 1: Identifying Special Tool (000 589 20 21 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

NOTE: Proceed in the order stated in the diagram overleaf when examining and servicing crankshafts.

Examining, grinding

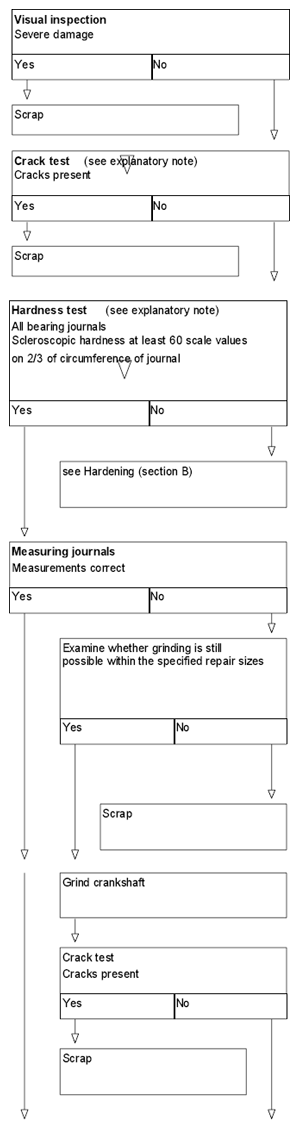

Fig 2: Grinding Examining Flow Chart (1 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

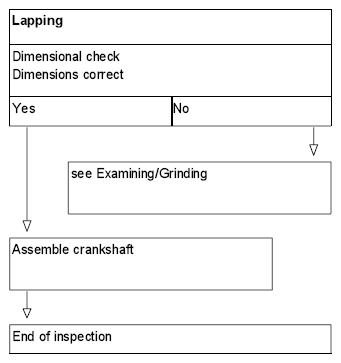

Fig 3: Grinding Examining Flow Chart (2 Of 2)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Hardening

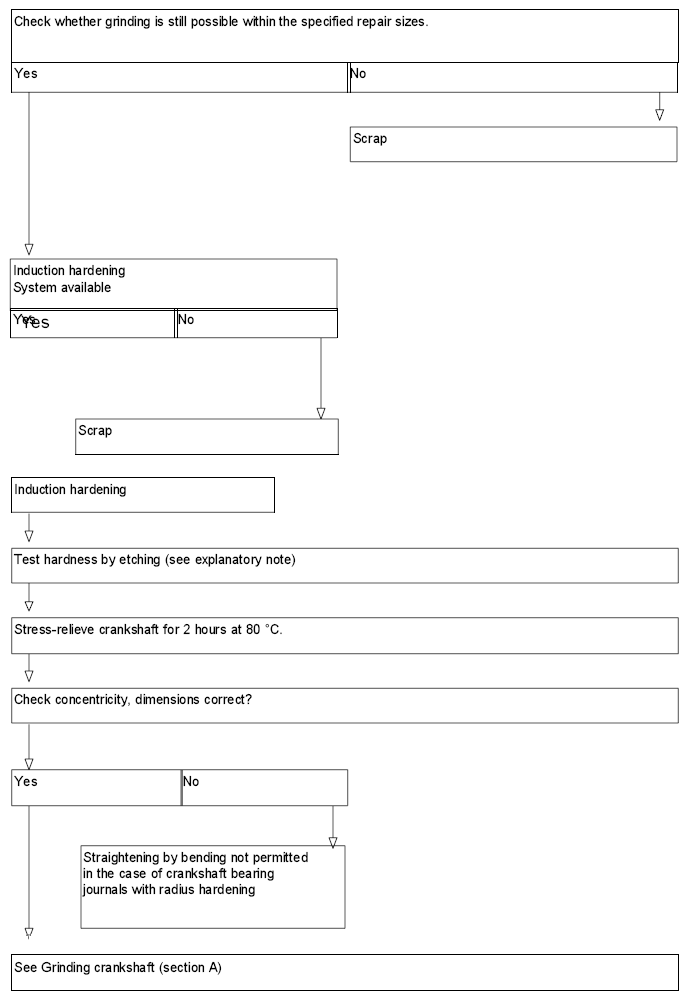

Fig 4: Hardening Examining Flow Chart
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Explanatory notes of diagram

Crack testing

Clean crankshaft. The bearing journals must be free of oil and grease.

Magnetize crankshaft and apply fluorescent powder (flux).

It is also possible to use a dye penetration method (immersing in bath or using a spray can).

Aid: dye, UV oil or fluorescent powder, cleaning product, developer

Hardness testing

Test hardness with the drop hardness tester (scleroscopic hardness).

The minimum hardness of 60 scale values must exist at 2/3 of the circumference of the journal.

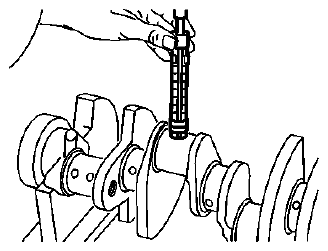

Fig 5: Identifying Test Hardness With Drop Hardness Tester
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Hardening

Always harden journals with hardened radii (arrows) inductively.

If this is not possible, scrap crankshaft.

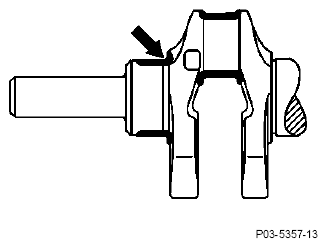

Fig 6: Locating Harden Journals With Hardened Radii
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Inspecting hardening

The setting of the hardening system should be checked by taking metallographic sections in order to achieve proper hardening. These sections can be taken from test hardenings on scrapped crankshafts. Check hardening by etching the surface of the journal with a 2 % alcoholic nitric acid (HNO ₃ ).

No dark patches should appear on the surface of the journal.

The hardened radii must be just as bright as the surface of the journal.

The non-hardened radii darken in color.

As a comparison, it is recommended to perform etching on a journal which has been metallographically checked.

Following this, carefully wash off the nitric acid with alcohol.

Corrosion protection

Crankshafts which are not re-installed immediately, must be oiled with a corrosion protection oil.
