Adjusting clearance of ring gear to starter - RA03001194350X(03-4350)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Starter removed (AR15.30-7100?)

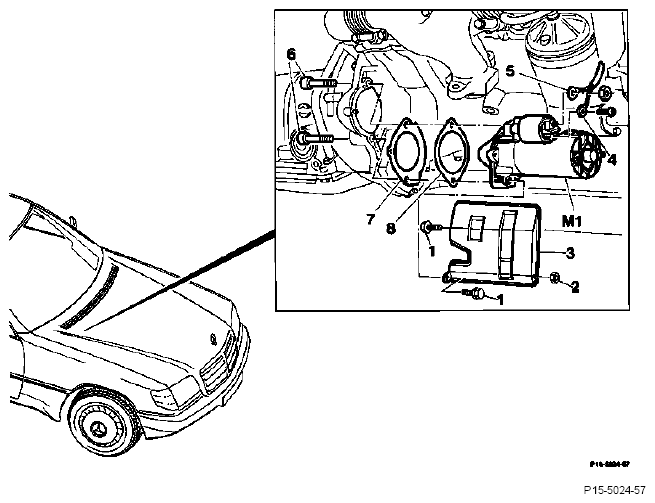

| Clearance of starter to ring gear | adjust with shims (7, 8).
NOTE:
The specified positioning of the starter relative to ring gear is adjusted by shims (7, 8). The correct clearance ensures that the starter pinion engages and releases properly. When performing removal and installation work, pay attention to shims (7, 8) and adjust clearance of ring gear to starter, if necessary. |
CLEARANCE OF RING GEAR TO STARTER IN MM
| Clearance of rear edge of crankcase to front edge of ring gear | No. of shims fitted at starter |
| 14.3 to 15.2 | 0 |
| 13.3 to 14.2 | 1 |
| 12.3 to 13.2 | 2 |
