Removing and installing rear engine mount - RA22001192120X(22-2120)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Open hood, raise to vertical position (01-0080) .

Operation no. of operation texts and work units or standard texts and flat rates

22-1160, 1168

Models 124, 140

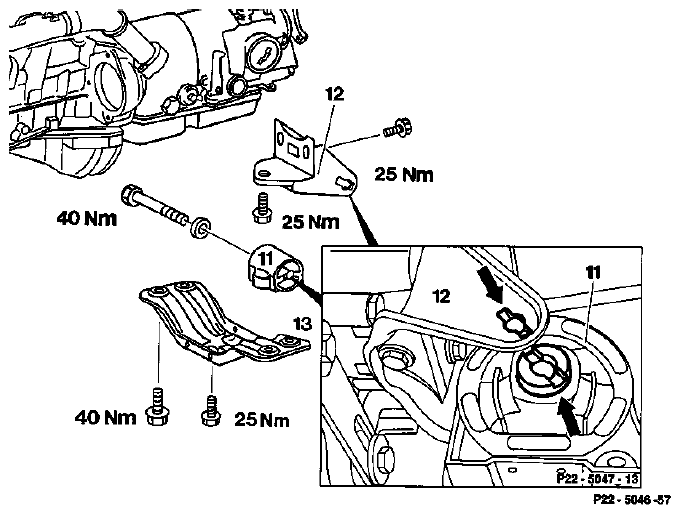

Fig 1: Identifying Rear Engine Mount Remove/Install Components (Models 124, 140)

Transmission	support.
Cable straps of electric cable of kickdown at engine carrier (13)	detach, attach.
Engine carrier (13)	remove, install (M8: 25 Nm; M10: 40 Nm).
Engine mount (11)	remove, install (40 Nm). NOTE: The installation position is fixed by a slot (arrow) on the engine mount (11) and by a recess (arrow) on the mounting plat (12).

Model 129

Operation no. of operation texts and work units or standard texts and flat rates

22-1160, 1168

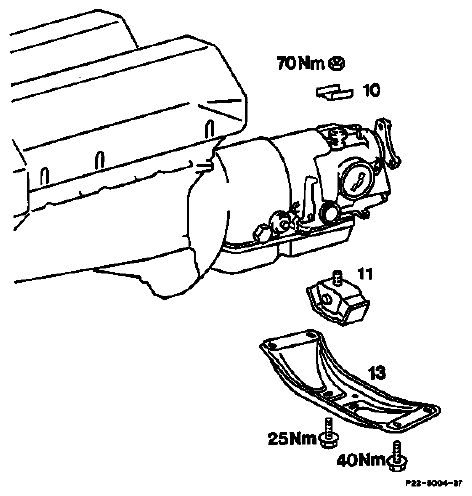

Fig 2: Identifying Rear Engine Mount Remove/Install Components (Model 129)

Transmission	support.
Cable straps of wiring of kickdown switch and oxygen sensor at engine carrier (13)	detach, attach.
Engine carrier (13)	remove, install (M8: 25 Nm; M10: 40 Nm).
Engine mount (11)	remove, install (70 Nm).
Backing plate (10)	note.

Special tool

Fig 3: Identifying Special Tool (001 589 66 21 00)

Model 210

Operation no. of operation texts and work units or standard texts and flat rates

22-1160, 1168

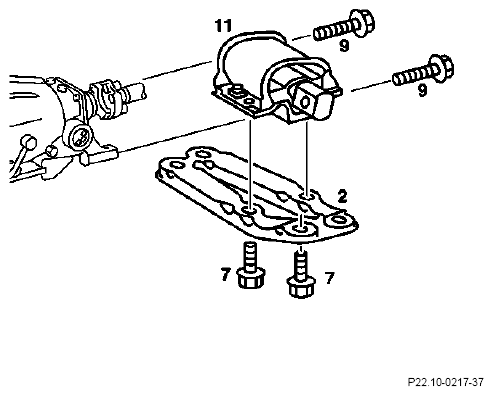

Fig 4: Identifying Rear Engine Mount Remove/Install Components (Model 210)

Transmission	support.
Engine mount (11)	remove, install (M8 25 Nm) (M10 40 Nm)
