Removing and installing rear engine mount - RA22001042120X(22-2120)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation no. of operation texts and work units or standard texts and flat rates:

22-1160, 1168

Models 124, 129, 140

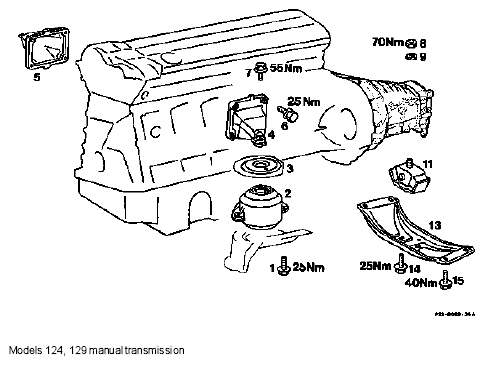

Fig 1: Identifying Rear Engine Mount Remove/Install Components (Models 124, 129 Manual Transmission)

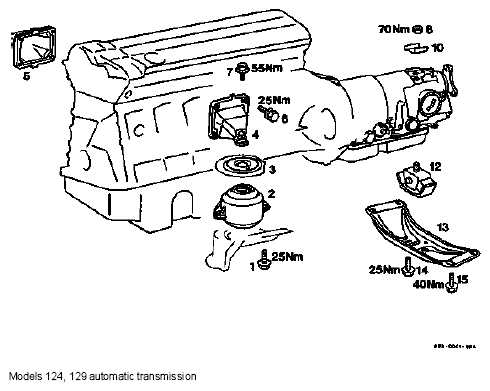

Fig 2: Identifying Rear Engine Mount Remove/Install Components (Models 124, 129 Automatic Transmission)

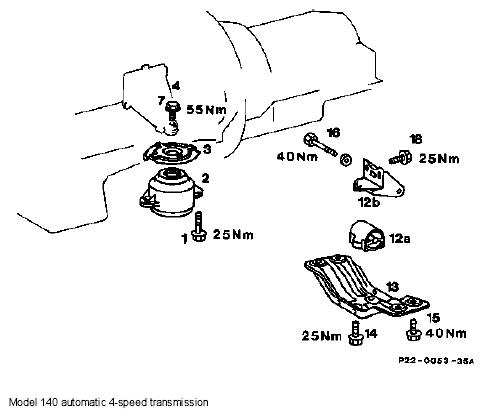

Fig 3: Identifying Rear Engine Mount Remove/Install Components (Model 140 Automatic 4-Speed Transmission)

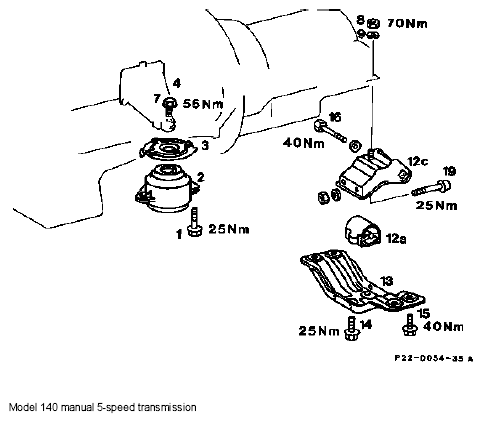

Fig 4: Identifying Rear Engine Mount Remove/Install Components (Model 140 Manual 5-Speed Transmission)

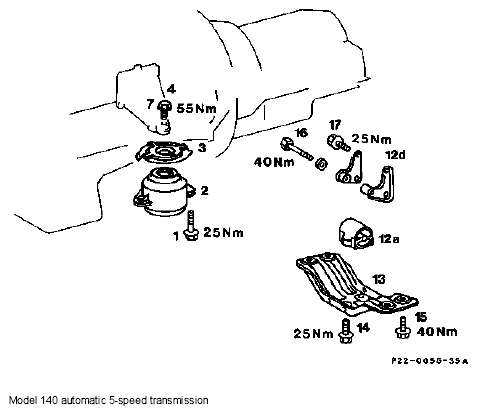

Fig 5: Identifying Rear Engine Mount Remove/Install Components (Model 140 Automatic 5-Speed Transmission)

Transmission	support.
Cable straps of wiring of kickdown switch and oxygen sensor at engine carrier (13)	slacken, tie.
Engine carrier (13)	remove, install (M8 25 Nm, M10 40 Nm).
Models 124, 129:	remove engine mounts (11 or 12), install (70 Nm). Pay attention to washer (9) or backing plate (10) NOTE: The engine mounts differ depending on whether a manual or automatic transmission is fitted.
Model 140:	slacken securing bolt (16) of engine mount, tighten (40 Nm), pay attention to note.

Special tools

Fig 6: Identifying Special Tool (001 589 66 21 00)

Fig 7: Identifying Special Tool (001 589 72 21 00)

Note re model 140

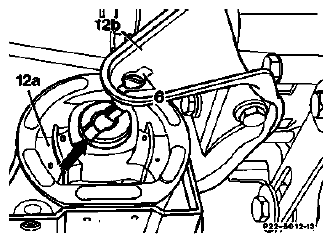

The installation position of the engine mount (12a) is fixed by a slot (arrow) on the mount and a recess (6) on the bracket (12b).

Rear engine mounts of engine 104 in model 140 differ in their load bearing capacity from the engine mounts of engines 119 and 120 and must not be interchanged.

Automatic 4-speed transmission

Fig 8: Identifying Engine Mount And Bracket

Models 202, 210

Operation no. of operation texts and work units or standard texts and flat rates:

01-1260

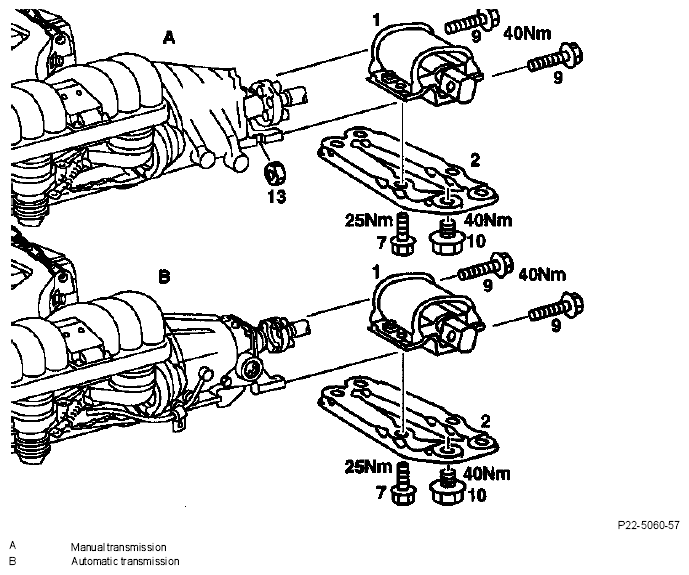

Fig 9: Identifying Manual And Automatic Transmission Engine Mount Remove/Install Components

Transmission	support.
Bolts (7) and (10)	unscrew, screw on (M8 25 Nm, M10 40 Nm).
Engine carrier (2)	remove, install.
Manual transmission:	unscrew bolts (9) together with nuts (13), screw on (40 Nm).
Automatic transmission:	unscrew bolts (9), screw on (40 Nm).
Engine mounts (1)	remove, install.
