Removing and installing engine carrier - RA22001202500X(22-2500)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Engine compartment panel at bottom front removed (Maintenance Manual 6190).
Engine mounts (3) removed (22-2110) .
Secondary air injection lines (10) removed.
Operation no. of the operation texts and work units or standard texts and flat rates:
22-4320
Model 129 corresponds to Removing and installing engine mounts (22-2110)
Model 140

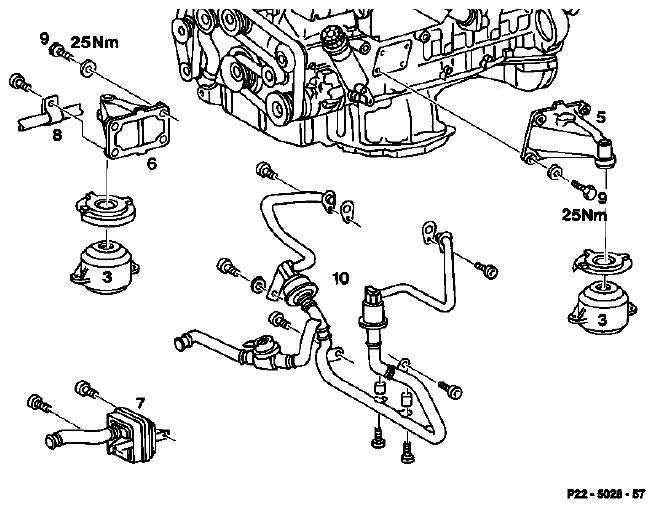

| Engine | raised at front lifting eye (22-2110) . |
| Left or right engine carrier | remove, install. |
| Right engine carrier (6): air cleaner of air pump (7) | unbolt at engine carrier (6) and at bracket of air pump/generator, bolt on. |
| Right engine carrier (6): alternator wiring harness (8) | unbolt at engine carrier (6), bolt on. |
| Bolts (9) | unscrew, screw on (25 Nm). |
| Engine carriers (5) and (6) | take off downward, install. |
