Removing and installing engine carrier - RA22001042500X(22-2500)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Preceding work:

Bottom engine compartment panel removed (Maintenance Manual 6190).

Models 124, 129, 140

Operation no. of operation texts and work units or standard texts and flat rates:

22-4320

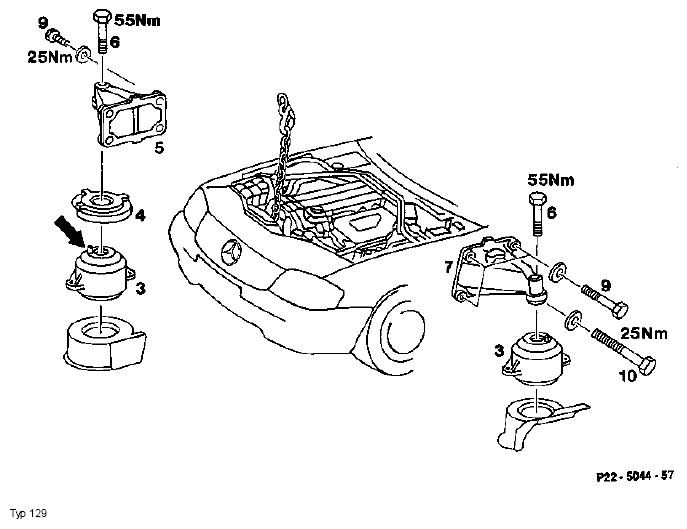

Fig 1: Identifying Engine Carrier Remove/Install Components (129)

Fan shroud ring	remove, place over fan, install (20-3400) .
Air intake scoop	remove, install (09-0060) .
Engine mount bolts (6) at top	unscrew, screw on (55 Nm). Installation note re model 140 Also bolt holder of high pressure expansion hose to engine carrier (7).
Engine	raise at front lifting lug.
Models 129, 140:	take off shield (4) from engine carrier (5) on right, fit on.
Bolts (9 and 10)	unscrew, screw on (25 Nm).
Engine carriers (5 and 7)	remove, install
Model 124:	unbolt shield (4) at engine carrier (5) on right, bolt on. Notes Models 129, 140 with secondary air injection: also bolt mounting bracket of secondary air injection pipe onto engine carrier (5) on right. Models 124, 129 with electronic accelerator: also bolt mounting bracket of actuator to engine carrier (7) on left. Model 140: also bolt mounting bracket of generator wiring harness to engine carrier (5) on right. The anti-twist lock (arrow) in the engine mount (3) must engage in the opening in the shield (4) and in the retaining slot in the engine carrier.

TIGHTENING TORQUES IN NM

Bolt of engine carrier to crankcase	25
Bolt of engine carrier to engine mount	55

Special tool

Fig 2: Identifying Special Tool (001 589 72 21 00)

Models 202, 210

Preceding work:

Engine mounts removed (22-2110) .

Operation no. of operation texts and work units or standard texts and flat rates:

22-4320

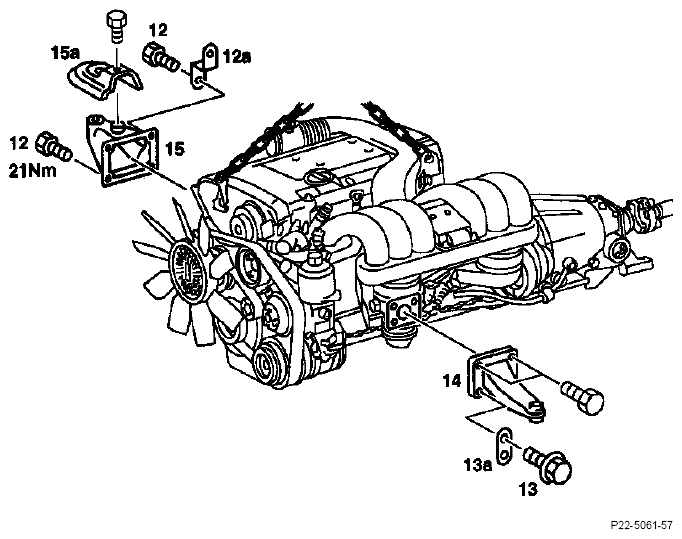

Fig 3: Identifying Engine Carrier Remove/Install Components (Models 202, 210)

Engine	raised at front lifting lug.
Right engine carrier:	unbolt shield (15a) at engine carrier (15), bolt on.
Bolts (12) and (13)	unscrew, screw on (21 Nm)
Engine carriers (14) and (15)	remove, install. NOTE: Model 202: Also bolt bracket (12a) to engine carrier (15) on right and bracket (13a) to engine carrier (14) on left.
