Removal and installation of the front engine stop - ra22006010215x(0215)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engines 601, 602 (except 602.98), 603
Preceding work:
Bottom engine compartment lining removed (01-006).
Operation no. of operation texts and operation values or standard texts and flat rates; 22-210

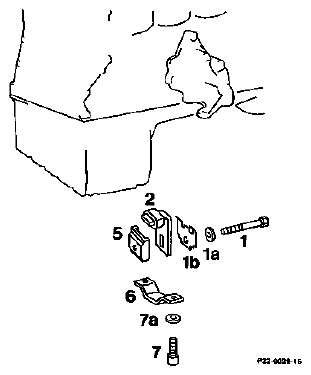

| Adjusting bolt (1) | unscrew, screw in, 130 Nm.
NOTE:
Adjust engine stop (22-220).
|
| Hexagon socket screws (7) | unscrew, screw in, 25 Nm. |
| Bracket (6) and engine stop (2) | take off, attach. |
| Tightening torques | Nm |
|---|---|
| Hexagon socket screws, engine stop bracket | 25 |
| Adjusting bolt | 130 |
Special tools
