Removal and installation of the exhaust system from flanged connection - ra49lh1047280x(7280)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-Injection
Operation No. of operation texts and operation values or standard texts and flat rates 49-7280

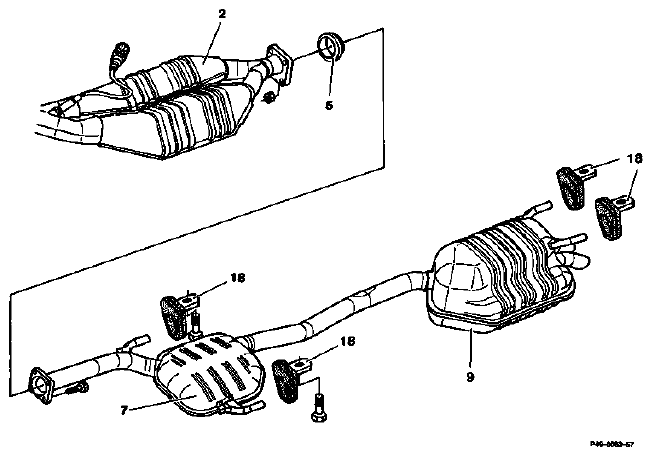

| Flanged connections at catalytic convertor (2) | take off, fit on. Tightening torque 20 Nm.
NOTE:
Always replace self-locking nuts and seal.
|
| Rubber bush (18) at center muffler (7) | take off, fit on. |
| Centre and rear mufflers (7, 9) | take out of the rubber rings (18) at the rear muffler (9), attach. |
| Seal (5) and rubber bush (18) | check suitability for re-use, replace if necessary. Ensure that parts are correctly installed. |
| Centre and rear mufflers (7, 9) | examine, replace if necessary (49-4940 ). |
| Leaktightness of all connection points | check with engine running. |
NOTE:
If necessary, clean off combustion or corrosion residues at the tapered connection pieces of the pipes (2, 7) and seal (5) with emery cloth.
Ensure that the parts are correctly installed.
