Removal and installation of the exhaust system complete - ra49lh1047000x(7000)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engine 104 LH-Injection

Preceding work:

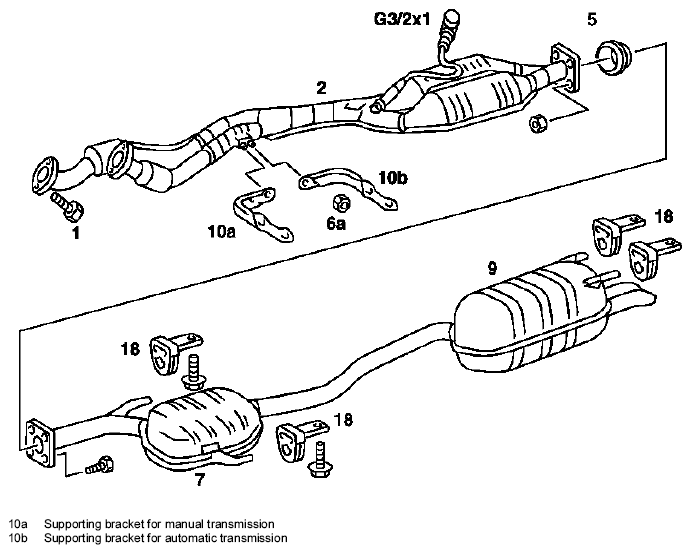

Fig 1: Identifying Exhaust System Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Plug connection of oxygen sensor (G3/2x1)	take off, fit on. NOTE: Turn union nut to the left as far as the stop → to open Turn union nut to the right as far as the stop → to secure
Bolts (1) at exhaust manifold	unscrew, screw in. Installation note Install new riveted nuts in the exhaust manifolds with caulking bolt 103 589 01 39 00. Tightening torque 30 Nm as reference value.
Nuts (6a) at supporting bracket (10a or 10b)	unscrew, screw on.
Rubber bush (18) at center muffler (7)	take off, examine, replace if necessary, fit on.
Centre and tail mufflers (7, 9)	remove from rubber bushes (18) at the tail muffler (9), attach. Examine rubber bushes, replace if necessary.
Complete exhaust system	take off, insert.
Leaktightness of all connection points	check with engine running.
LH control unit fault memory	read, erase if necessary (see Diagnosis Manual Engine, Volume 2, Index 0).

Special tools

Fig 2: Identifying Special Tool (103 589 01 39 00 14)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Identifying Special Tool (000 589 71 03 00 83)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
