Wiring diagrams - RA30011240580X(30-580)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

B. Model 124 with automatic transmission

Models

124.020/080/120/180, 124.125/130 up to vehicle ident. end no. A 087383 (except )

124.133/193/333/393 up to approx. 08/88

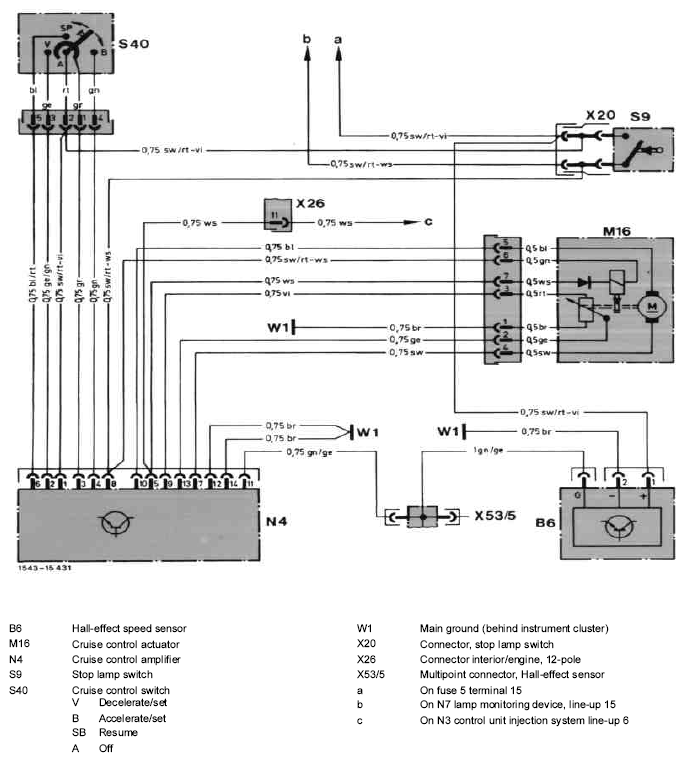

Fig 1: Automatic Transmission - Wiring Diagrams (1 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 124.023/026/03 up to approx. end of 08/85

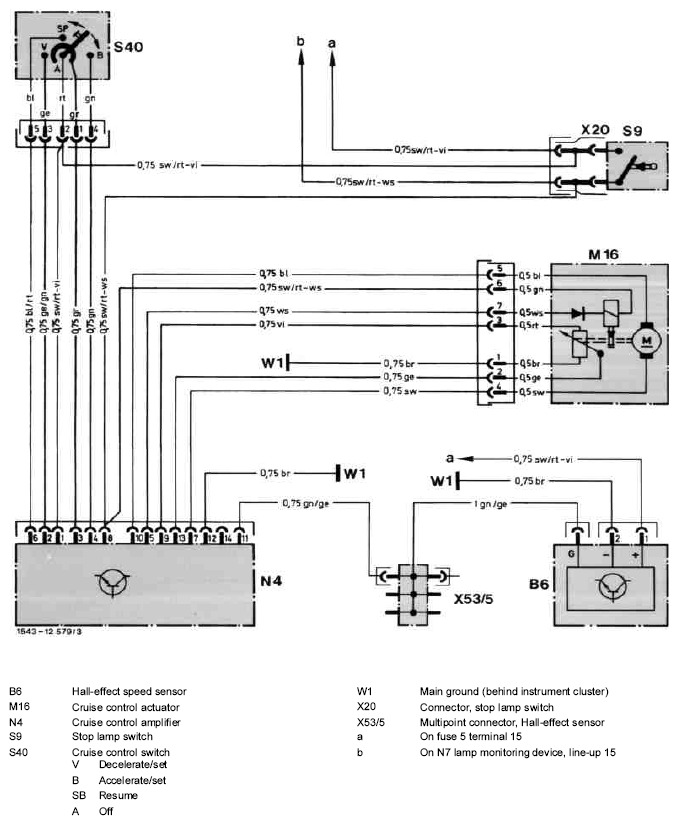

Fig 2: Automatic Transmission - Wiring Diagrams (2 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models

124.021/23 as of approx. 09/85 RUF/CAT up to approx. 08/88,

124.026/03 as of approx. 09/85 RUF/CAT up to approx. 08/87,

124.043/083 RUF/CAT up to approx. 08/88, 124.090 and 124.2 RUF/CAT up to approx. 08/87

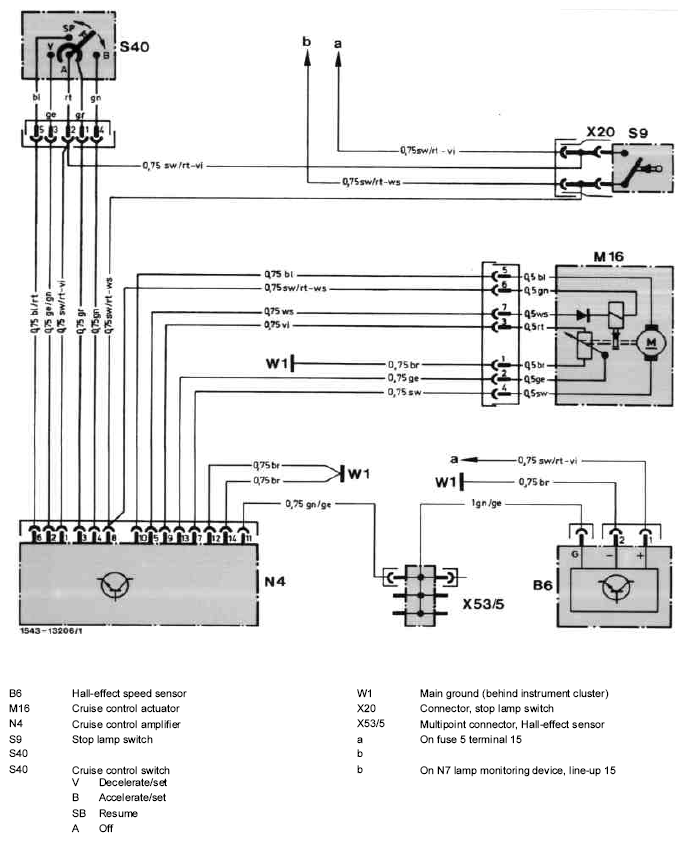

Fig 3: Automatic Transmission - Wiring Diagrams (3 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models

124.021/023/043/083 RUF/CAT as of approx. 09/88, 124.026/03/09 and 124.2 RUF/CAT as of approx. 09/87, 124.128/133/193/333/393 as of approx. 09/88 up to 08/89

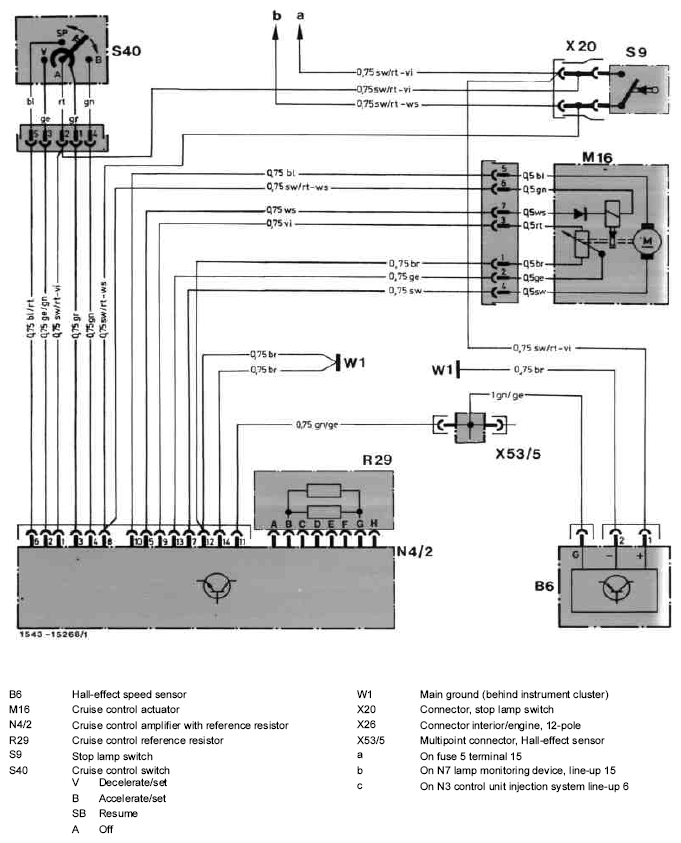

Fig 4: Automatic Transmission - Wiring Diagrams (4 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 124.026/030 1986,

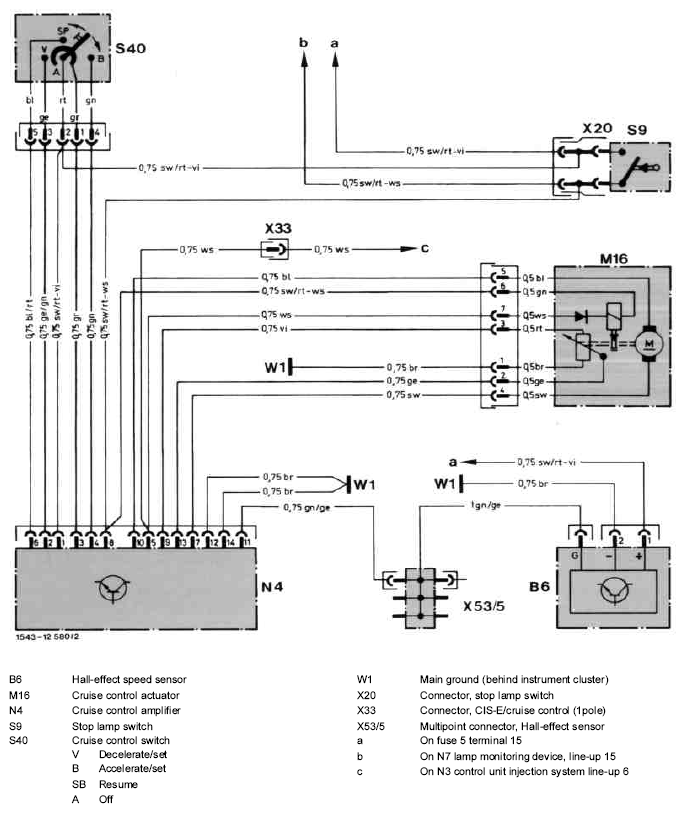

Fig 5: Automatic Transmission - Wiring Diagrams (5 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 124.026/030/050/090 as of 1988

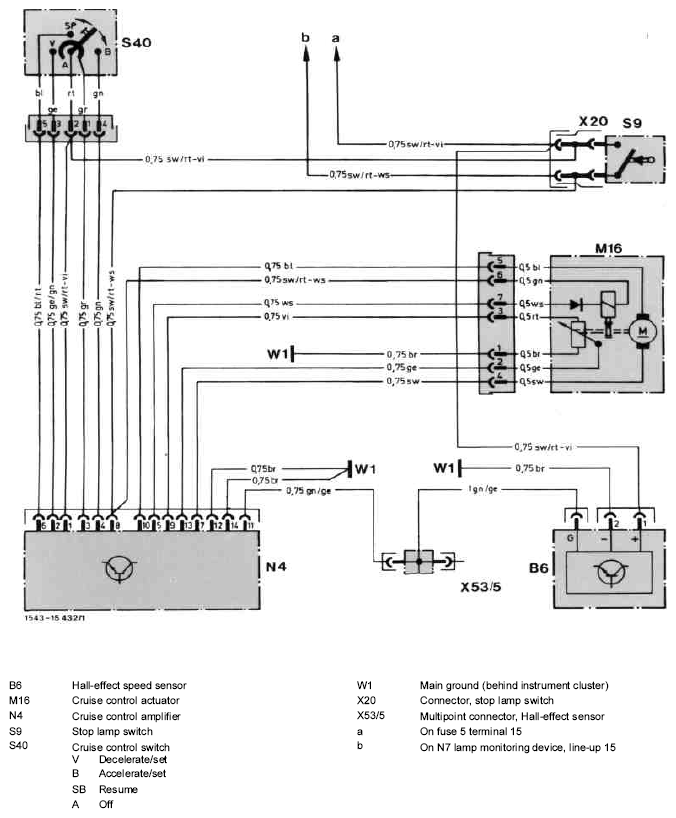

Fig 6: Automatic Transmission - Wiring Diagrams (6 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models 124.125/130 as of vehicle ident. end no. A 187384 and models 124.185/190/330

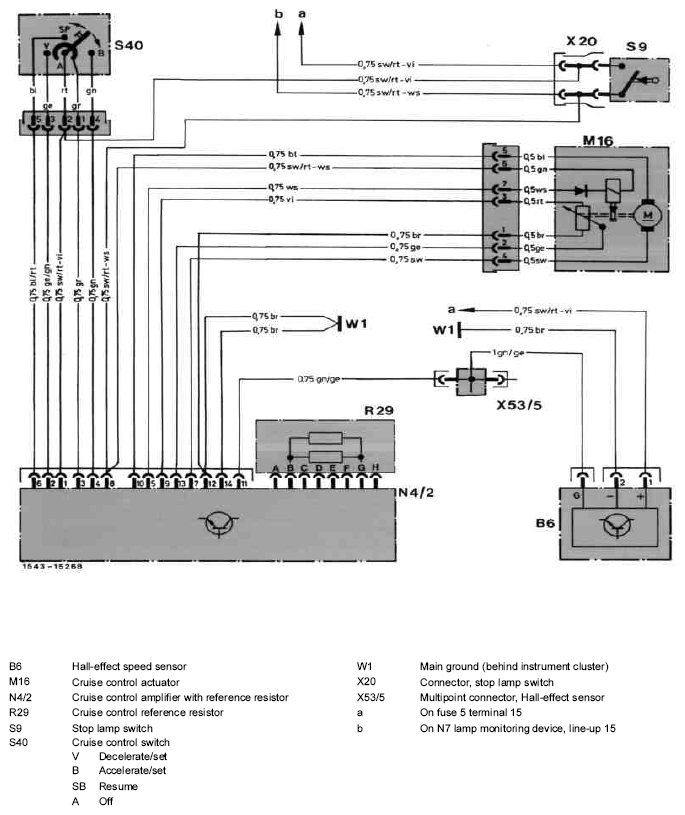

Fig 7: Automatic Transmission - Wiring Diagrams (7 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Models124.133/193 1987

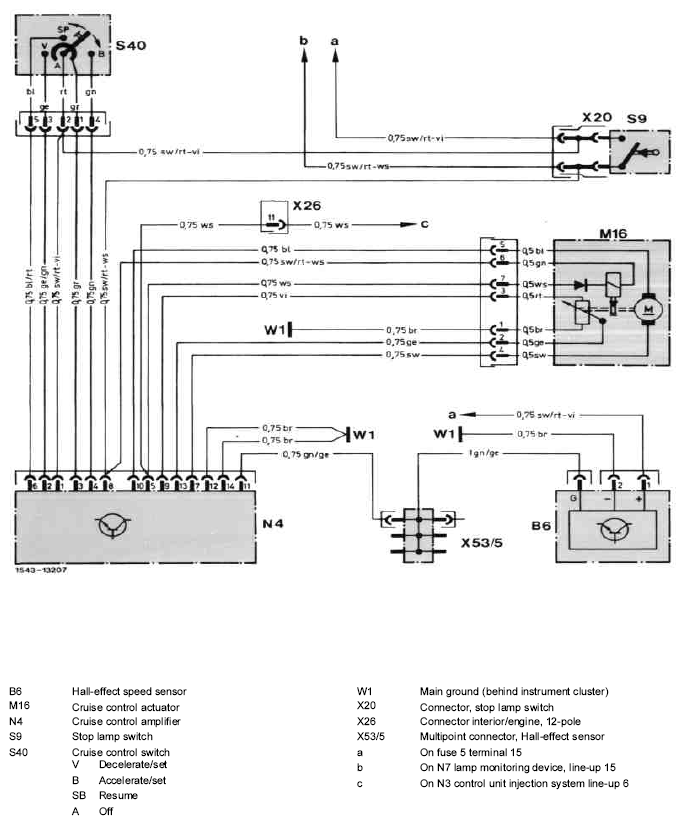

Fig 8: Automatic Transmission - Wiring Diagrams (8 Of 8)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
