Removal and installation of switch on clutch pedal (up to May 93) - RA30001240575X(30-575)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Cover at left or right under instrument panel removed (68-150) .
Operation no. of operation texts and work units or standard texts and flat rates

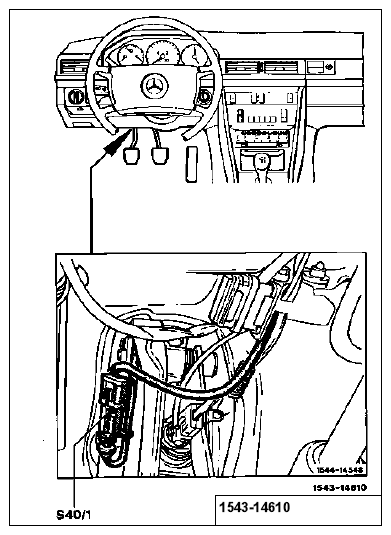

| Connector at clutch pedal switch, Tempomat/cruise control (TPM) (S40/1) | disconnect, connect. |
| Clutch pedal switch, Tempomat/cruise control (TPM) (S40/1) | loosen and remove. |
| Function test | perform on road. |
