Removal and installation of firewall bearing with accelerator pedal lever - ra30lh1043022x(3022)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Engine 104 LH-injection
Operation No. of operation texts and operation values or standard texts and flat rates--------------------.30-3022

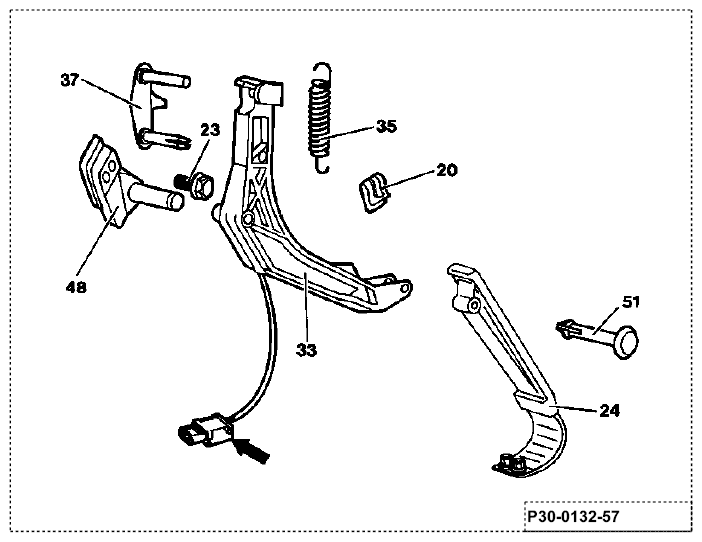

| Cover below instrument panel | remove, install. |
| Expansion pin (51) | press out, press in. |
| Return spring (35) | detach, attach. |
| Bowden cable | pull off accelerator pedal lever (33), fit on. To do this, take off bracket (37), fit on. |
| Locking element (20) on pin of fire wall bearing (48) | slacken, secure. |
| Accelerator pedal lever (33) | pull off, fit on. |
| Bolts (23) | unscrew at fire wall bearing, screw in. |
| Fire wall bearing (48) | take off, hold on. |
| Connector for idle contact switch (arrow) | disconnect, plug together. |
| Accelerator control | check; set if necessary (30-1010 ). |
| Electronic accelerator pedal (EFP) control unit fault memory | read, erase if necessary (see Diagnosis Manual Engine, Volume 2, Index 0). |
