Removing and installing fuel gauge sender - AR47.10-P-7000FB
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140
| Removal, installation | |||
| Risk of explosion from ignition. Risk of poisoning from inhaling and swallowing fuel. Risk of injury as a result of fuel coming into contact with skin and eyes. | No fire, naked flame or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | If fuel tank is full, pump out about 8 liters of fuel | AR47.10-P-4001B | |
| 2 | Remove trim panel for fuel tank in trunk | ra68001400480x | |

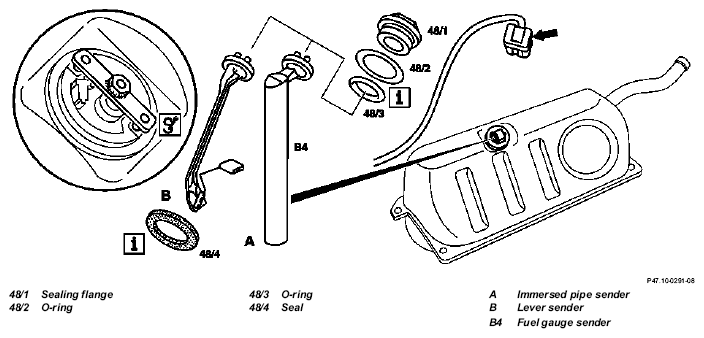

| 3 | Unplug coupling (arrow) for fuel gauge sender (B4) | Secure electric cable to prevent it slipping off | |
| 4.1 | Unbolt sealing flange (48/1) and fuel gauge sender (B4) | *BA47.10-P-1003-01B | |
| Lever sender replaces immersed pipe sender | BT47.10-P-0001-01A | ||
| 4.2 | Open bayonet lock of fuel gauge sender (B4) | Fig 2 | |
| 5 | Take out fuel gauge sender (B4) | ||
| 6 | Install in the reverse order | ||
| 7 | Replace O-rings (48/2, 48/3, 48/4) |
| Number | Designation | Model 140 | |
|---|---|---|---|
| BA47.10-P-1003-01B | Sealing flange and fuel gauge sender to fuel tank | Nm | 40 |
