Connection diagram of evaporative emission control system - AR47.30-P-8212-01FB

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engine 120.982/983

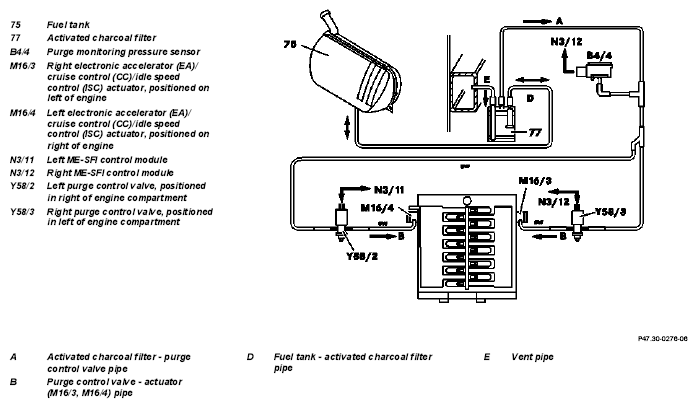

Connection diagram of ME-SFI evaporative emission control system model 129, 140 without ski bag with engine 120

Fig 1: ME-SFI Evaporative Emission Control System Connection Diagram (Model 129, 140 Without Ski Bag With Engine 120)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

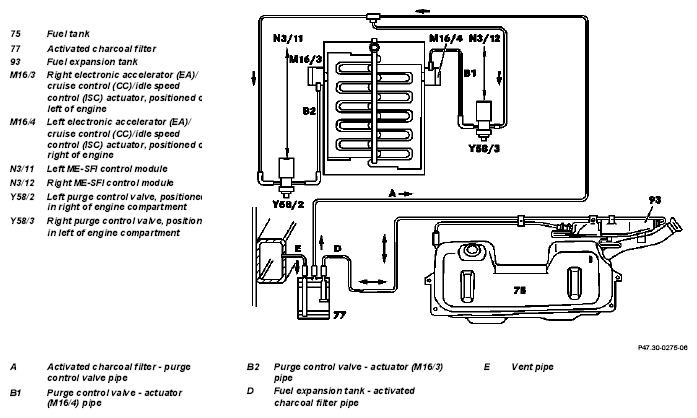

Connection diagram of ME-SFI evaporative emission control system model 140 with ski bag, engine 120

Fig 2: ME-SFI Evaporative Emission Control System Connection Diagram (Model 140 With Ski Bag, Engine 120)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

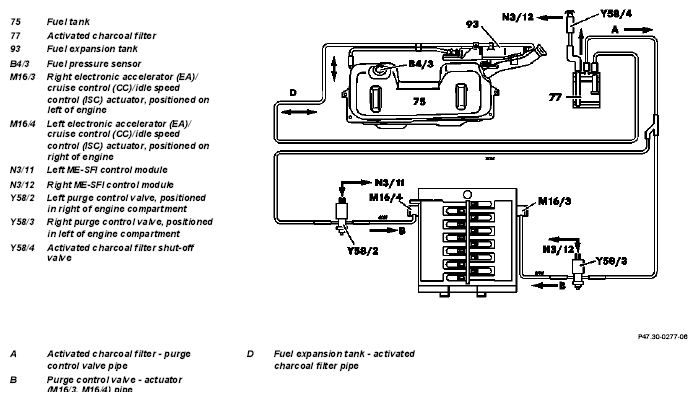

Connection diagram of ME-SFI evaporative emission control system model 129 with engine 120

Fig 3: Connection Diagram Of ME-SFI Evaporative Emission Control System (Model 129 With Engine 120)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

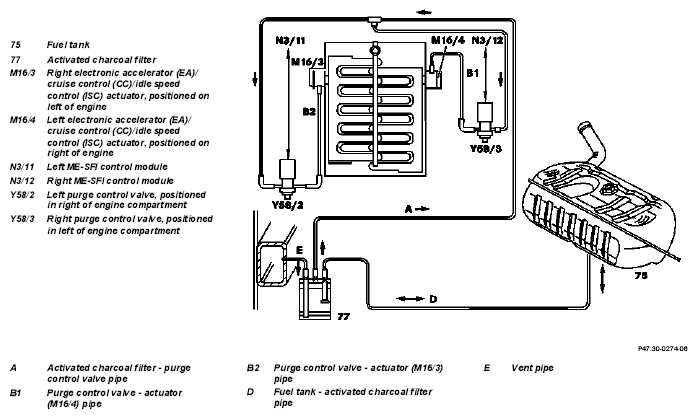

Connection diagram of ME-SFI evaporative emission control system model 140 with engine

Fig 4: Connection Diagram Of ME-SFI Evaporative Emission Control System (Model 140 With Engine 120)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
