Connection diagram of evaporative emission control system - AR47.30-P-8212-01FA

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Engine 120.980/981

Connection diagram of LH-SFI evaporative emission control system model 129, 140 without skibag with engine 120

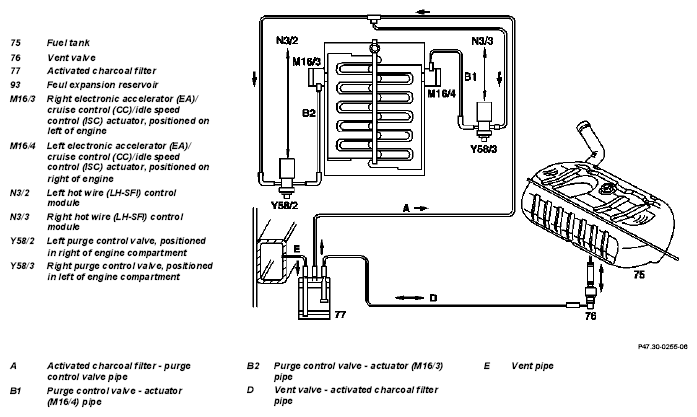

Fig 1: LH-SFI Evaporative Emission Control System Connection Diagram (Model 129, 140 Without Skibag With Engine 120)
G04686362Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connection diagram of LH-SFI evaporative emission control system model 140 with skibag with engine 120

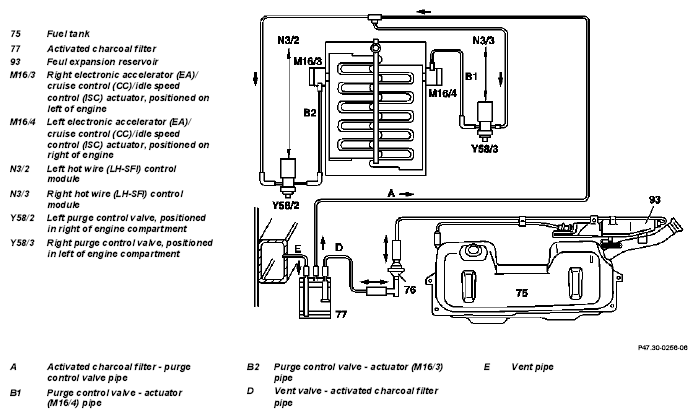

Fig 2: LH-SFI Evaporative Emission Control System Connection Diagram (Model 140 With Skibag With Engine 120)
G04686363Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
