Connecting diagram of evaporation emission control system - AR47.30-P-8212-01DB

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Connecting diagram of evaporation emission control system HFM-SFI model 140, engine 104 with ski bag

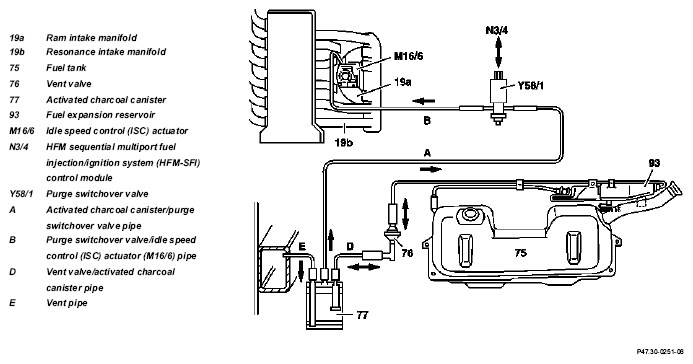

Fig 1: Connecting Diagram Of Evaporation Emission Control System (HFM-SFI Model 140, Engine 104 With Ski Bag)
G04715629Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
