Connecting diagram of evaporation emission control system - AR47.30-P-8212-01DA

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Connecting diagram of evaporation emission control system HFM-SFI models 124, 129, 140 without ski bag with engine 104

Shown on model 124

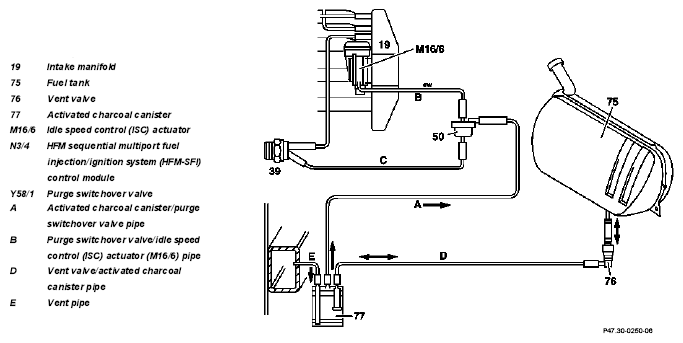

Fig 1: Connecting Diagram Of Evaporation Emission Control System (Shown On Model 124)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connecting diagram of evaporation emission control system PEC 1st version model 124 with engine 111

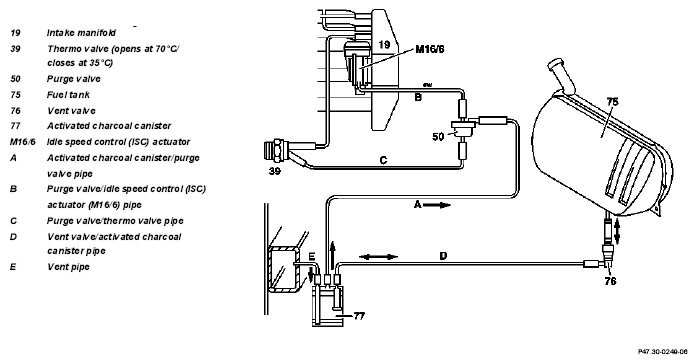

Fig 2: Connecting Diagram Of Evaporation Emission Control System (Model 124 With Engine 111)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Connecting diagram of evaporation emission control system HFM-SFI model 124 and PEC 2nd version model 124 with engine 111

Shown on engine 111 with HFM-SFI

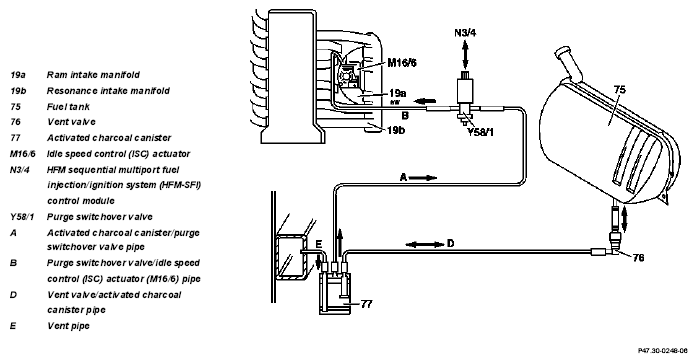

Fig 3: Connecting Diagram Of Evaporation Emission Control System (Shown On Engine 111 With HFM-SFI)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
