Remove/install fuel tank - AR47.10-P-4100FB
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 140
Shown on MODEL 140.057/076 without CODE (282a) Ski bag (through-loading facility)

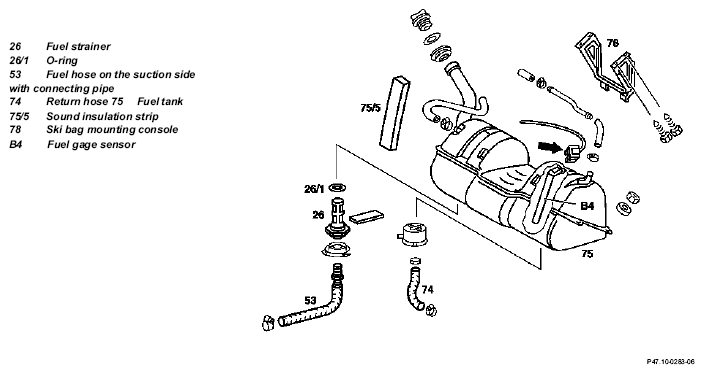

Fig 1: Identifying Fuel Tank Remove/Install Components (Shown On MODEL 140.057/076 Without CODE (282a) Ski Bag)
MODEL 140 with CODE (282a) Ski bag (through-loading facility)
| Remove/Install | |||
| Risk of explosion if ignition takes place, risk of poisoning caused by inhaling fuel vapors or swallowing fuel as well as risk of injury to skin and eyes exposed to fuel. | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| 1 | Empty fuel tank, fill. | AR47.10-P-4001B | |
| *BF47.10-P-1001-01A | |||
| 2 | Remove trim panel of fuel tank as well as left and right side trim panel of trunk | ||
| 3 | Dismount fuel hose on the suction side (53), fuel return hose (74) and vent line (76/1) | ||
| *BA47.10-P-1004-01B | |||
| Figure | |||
| 4 | Remove/install expansion reservoir | Only for vehicles with ski bag (through-loading facility) CODE 282a. | AR47.10-P-8021D |
| 5 | Remove bearing bracket (78) of ski bag mount | Only for vehicles with ski bag (through-loading facility) CODE 282a. | |
| 6 | Take out fuel tanks (75) | For special equipment "sound system Bose": ↓ Remove/install amplifier unit. See repair instructions for electrical system II model 140 step No. 82-7720 |
|
| 7 | Check sound insulation strip (75/5) | Replace if necessary. Stick on sound insulation strip (self-adhesive). | |
| 8 | Remove fuel strainer (26) | *BA47.10-P-1001-01B | |
| 9 | Replace O-ring (26/1) | Oil to facilitate installation | |
| 10 | Install in the reverse order | ||
| 11 | Dispose of fuel tank | OS47.10-P-0001-01A |
| Number | Designation | Model 140 | |
|---|---|---|---|
| BA47.10-P-1001-01B | Fuel strainer in fuel tank | Nm | 40 |
| BA47.10-P-1004-01B | Fuel hose with connection fitting to fuel strainer | Nm | 30 |
| Number | Designation | Model 140 without code 282a or code 308 | Model 140 with code 282a or code 308 | ||
|---|---|---|---|---|---|
| BF47.10-P-1001-01A | Fuel tank capacity | Total capacity | Liters | 100 | 90 |
| Reserve capacity | Liters | 12.5 | 12.5 | ||
