Removing fuel tank - AR47.10-P-4100-01DE

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

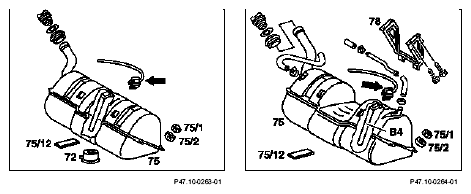

Left-hand illustration without ski bag Right-hand illustration with ski bag

  1. Remove expansion reservoir, install.
  2. Remove console (78) of ski bag mount.
    Fig 1: Identifying Fuel Tank Components
    G05438889Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

    IMPORTANT With special equipment "Soundsystem Bose": remove amplifier unit, install.

  3. Install in reverse sequence
