Removing and installing fuel expansion tank (models with skibag) - RA47LH1048021X(47-8021)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Operation No. of operation texts and operation values or standard texts and flat rates:

47 -8021

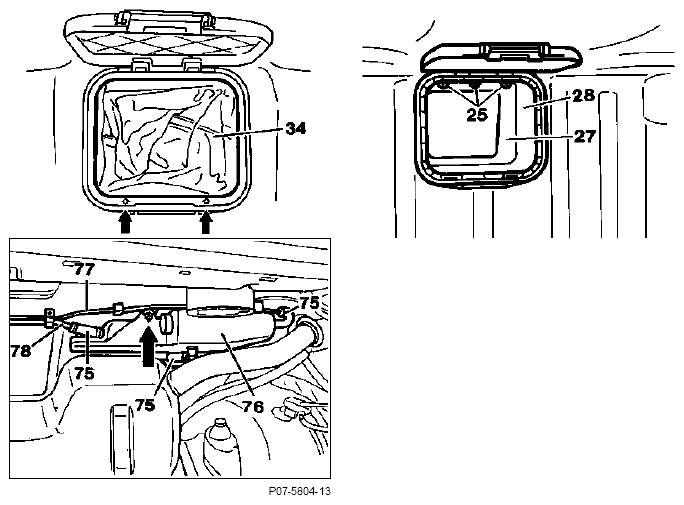

Fig 1: Identifying Fuel Expansion Tank Remove/Install Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Pay attention to safety precautions!
Ground cable at battery	disconnect, connect.
Pressure in fuel tank	release by taking off fuel filler cap, fitting on.
Skibag (34)	pull out of skibag mount, insert. To do this, release locks (arrows), engage.
Bolts (25)	unscrew, screw in.
Skibag mount (28)	release and pull out of the front mount (27), fit together and insert in mount.
Fuel tank trim as well as right side trim of trunk	release and pull out, fit together and insert.
Fuel hoses (75)	detach at fuel expansion tank (76), fit on. To do this, slacken hose straps, attach.
	If fuel tank is full, pump out about 8 liters.
Nut (arrow)	unscrew, screw in.
Fuel expansion tank (76)	pull out, insert. Release vent lines (77, 78), if necessary, clip into place.
	Do not kink vent line.
