Removing and installing shock absorber of tensioning device - RA13001044000X(13-4000)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Viscous fan clutch removed (20-3120) .
Operation no. of operation texts and work units or standard texts and flat rates:
13-4000
Engines with tensioning device with external damper

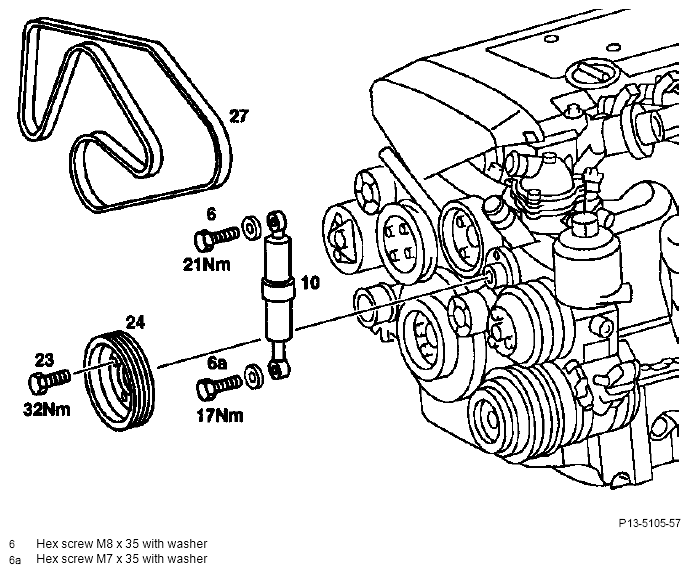

| Bolts (23) at belt pulley (24) of coolant pump | slacken, tighten (32 Nm). |
| Poly V-belt (27) | remove, install (13-1200) . |
| Belt pulley (24) of coolant pump | remove, install. |
| Shock absorber (10) | unbolt, bolt on (M7 17 Nm), (M8 21 Nm). |
TIGHTENING TORQUES IN NM
| Belt pulley of coolant pump M8 | 32 |
| M8 bolt top of shock absorber | 21 |
| M7 bolt bottom of shock absorber | 17 |
