Removing and installing guide pulley - RA13001203460X(13-3460)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Poly V-belt removed (13-3420) .
Operation no. of the operation texts and work units or standard texts and flat rates

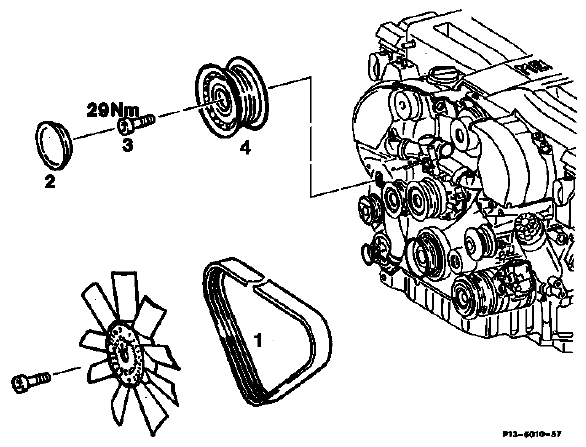

| Poly-V belt (1) | remove, install (13-3420) . |
| Cover (2) | pull off, attach. |
| Bolt (3) | unscrew, screw in (29 Nm). |
| Guide pulley (4) | pull off, attach. |
Special tool
