Removing and installing expansion tank - RA20001204500X(20-4500)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Preceding work:
Open hood, raise to vertical position (01-0080) .
Operation no. of the operation texts and work units or standard texts and flat rates
20-4950

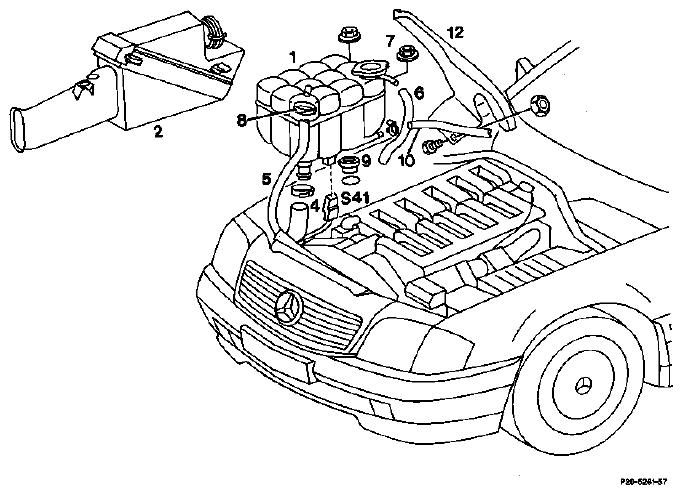

- Model 129
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Cap on expansion tank (1) open (release pressure). Coolant drain (until expansion tank is empty), refill Draining, pouring in coolant - anti-freeze protection table . Right air cleaner (2) remove, install (09-0015) . Cover (12) remove, install. Plug of coolant level indicator connector (S41) unplug, plug in. Coolant hoses (4), (5), (10) take off, fit on. Coolant hose (6) to overflow tank detach, fit on. Nuts (7) unscrew, screw on. Expansion tank (1) remove, install.
Rubber pad (9) of expansion tank (1)do not lose. Operation no. of the operation texts and work units or standard texts and flat rates
20-4950

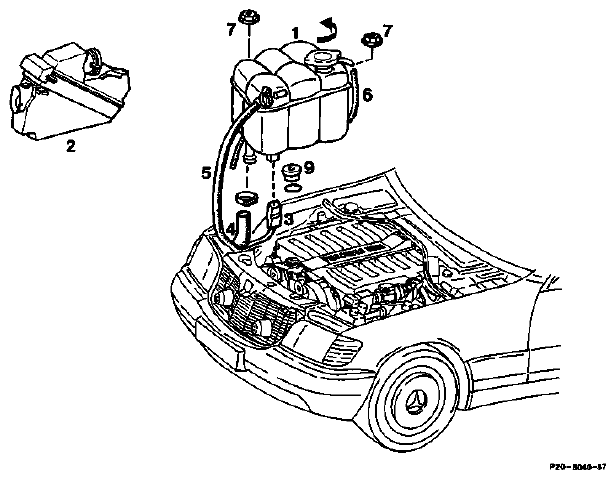

- Model 140
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Cap on expansion tank (1) open (release pressure). Coolant drain from radiator (until expansion tank is empty), refill Draining, pouring in coolant - anti-freeze protection table . Cover above right wheelhouse unclip, remove, install. Air cleaner (2), right remove, install (09-0015) . Plug (3) disconnect from coolant level indicator switch, reconnect. Coolant hoses (4, 5, 6) remove, install. Nuts (7) unscrew, screw on. Expansion tank (1) remove, install.
Rubber pad (9) of expansion tank (1)do not lose.
