Removing and installing side paneling in rear - AR68.30-P-4780A
MODEL 202.07/08/18
| Removal, installation | |||
|---|---|---|---|
| 1 | Remove side cushion on rear seat backrest | AR91.12-P-1710A | |
| 2 | Fold rear seat backrest forward | ||
| 3 | Remove hooks for sun shade (2) | ||

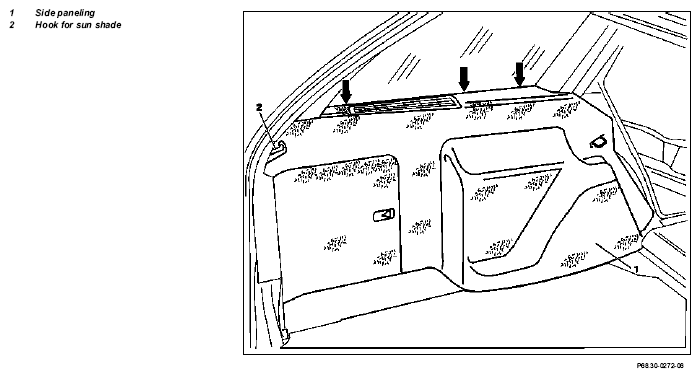

| 4 | Pull side paneling (1) up and out | Installation: Clip side paneling in downward (arrows) | |
| 5 | Reinstall in opposite order |
