Sliding roof: cleaning and greasing the slide rails and slide jaws C. Tilting/sliding roof - wh7730pkw0003x(7730)
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
Model 107 from 8/85; 123; 124, 129, 140 up to 6/93; 126 from 9/85; 201 from 1/85
| Tilting/sliding roof | open three-quarters of the way. |
| Headliner on tilting/sliding roof | unclip at front and remove upward. |
| Tilting/sliding roof | open in tilted position. |

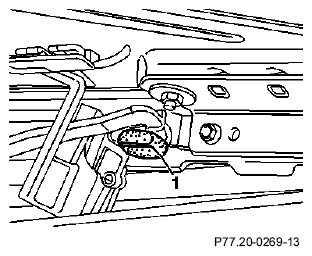

| Sliders (1) | check, replace and grease as required.
NOTE:
Pull out sliders (1) with suitable pliers, it is not necessary to remove the tilting brackets.
|
| Tilting/sliding roof panel | open completely. |
| Slider channel and rails | clean with rag. |
| Running surface for sliders | grease. |
| Tilting/sliding roof | check for proper function. |
| Excess lubricant paste | remove. |
| Tilting/sliding roof headliner | install. |
SERVICE PRODUCTS FOR REPAIR
| Designation | Order number |
|---|---|
| Lubricant paste | 001 989 14 51 |
